Ezigrip E-Rack Ramp

The E-Rack Ramp simply connects to the end of the E-Rack wheel tray, allowing you to push the bike up the ramp into position.

In a pack:

Ramp, hardware, manual

Fit:

Compatible with E-Rack, E-Rack 2020 and E-Rack 2

Dimensions:

1000 mm L x 125 mm W x 67 mm D



Step 1:
Assemble the ramp. Using the provided M6 nuts and bolts, fit the two halves of the ramp together. Use the provided wingnut to tighten the M6 nuts.

Step 2:

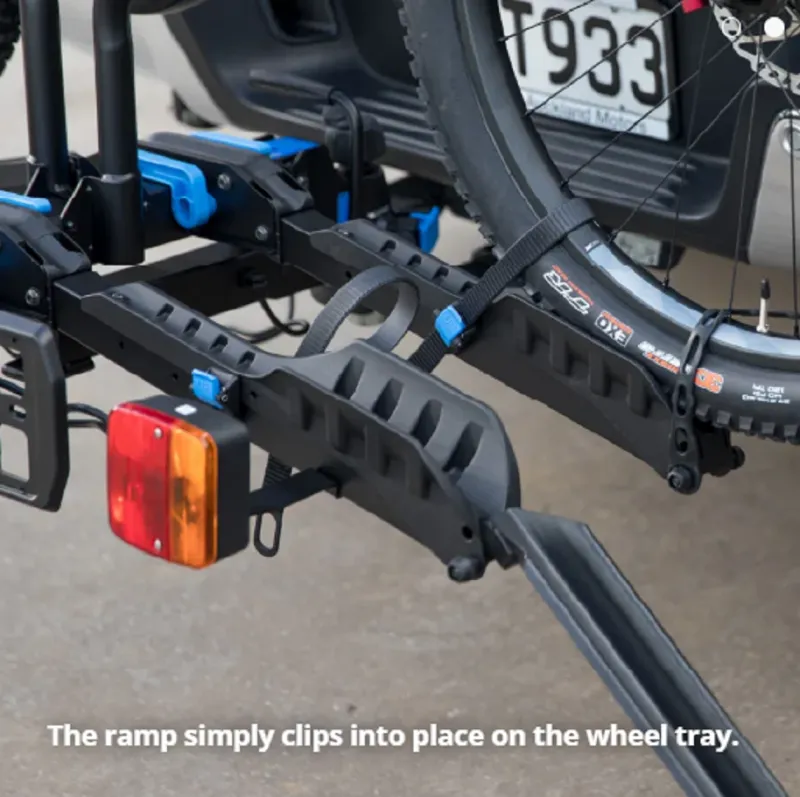

Insert the ramp into the wheel tray of the E-Rack – insert the rack in the wheel tray that will support the rear wheel of the bike. The ramp slots into position using two shallow hooks at the end of the ramp. The rubber feet at the base of the rack should rest on the ground.

Step 3:

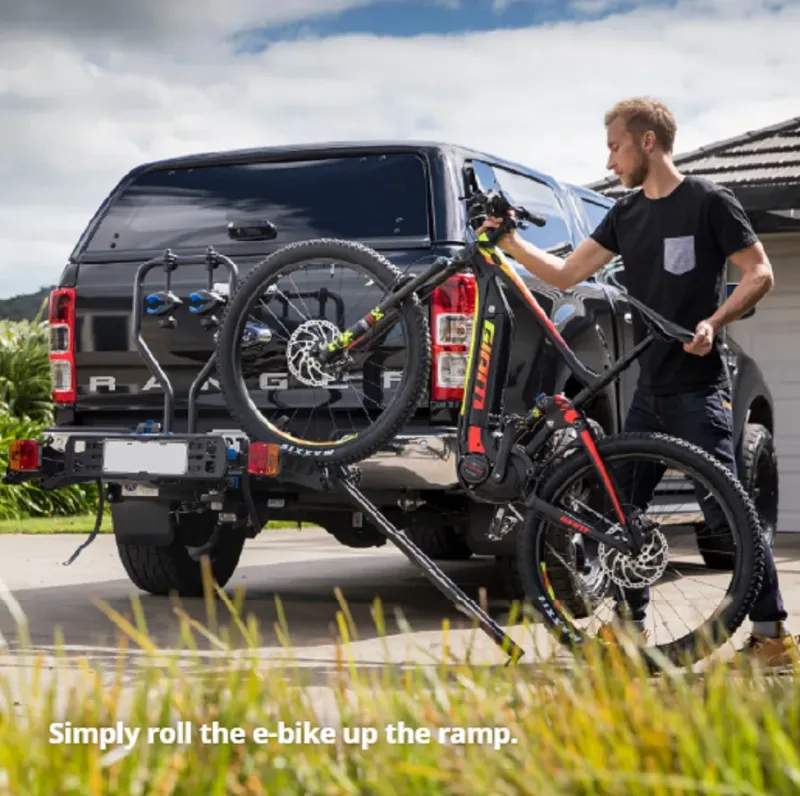

Roll the bike up the ramp so the rear wheel of the bike sits in the wheel tray that supports the ramp.
