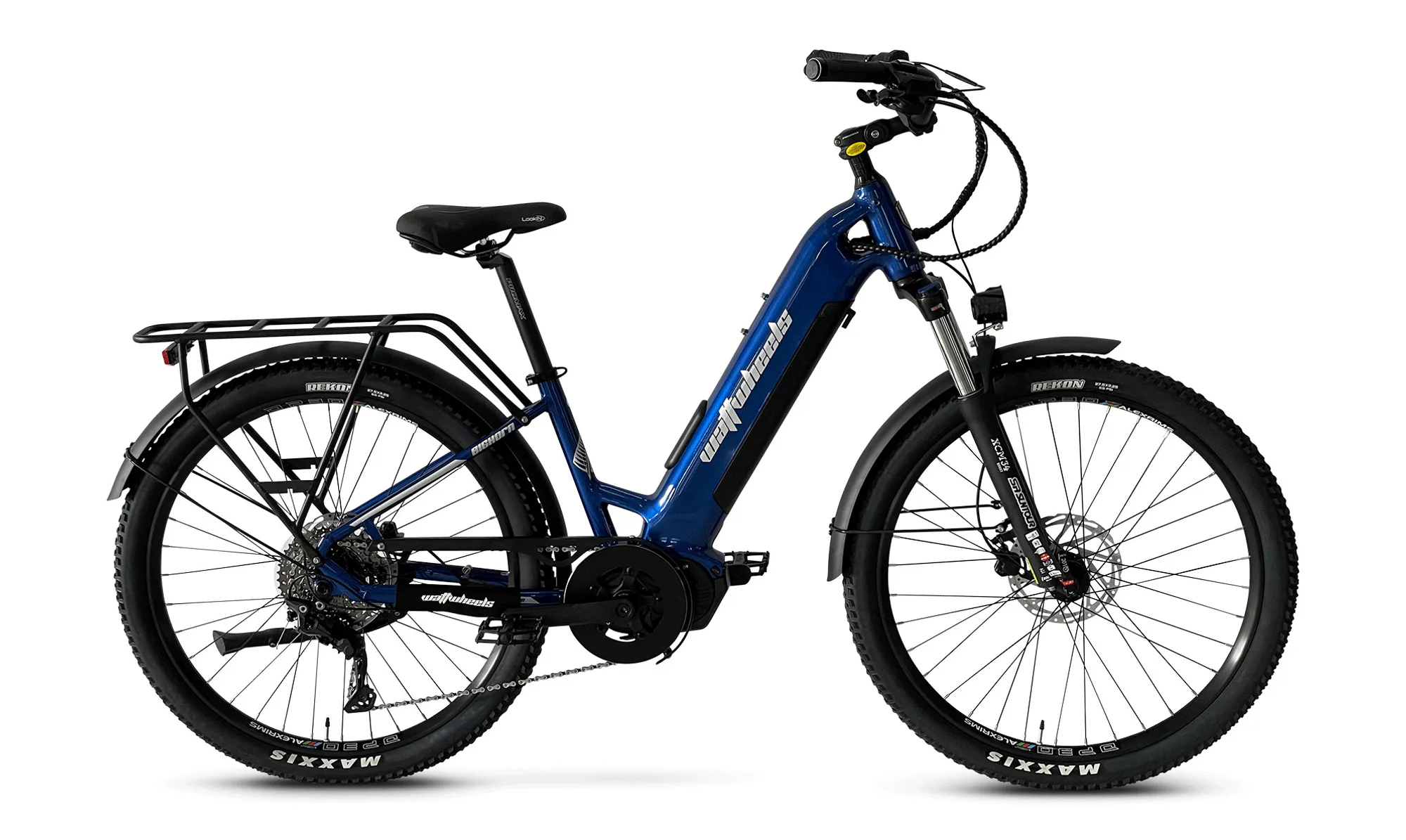

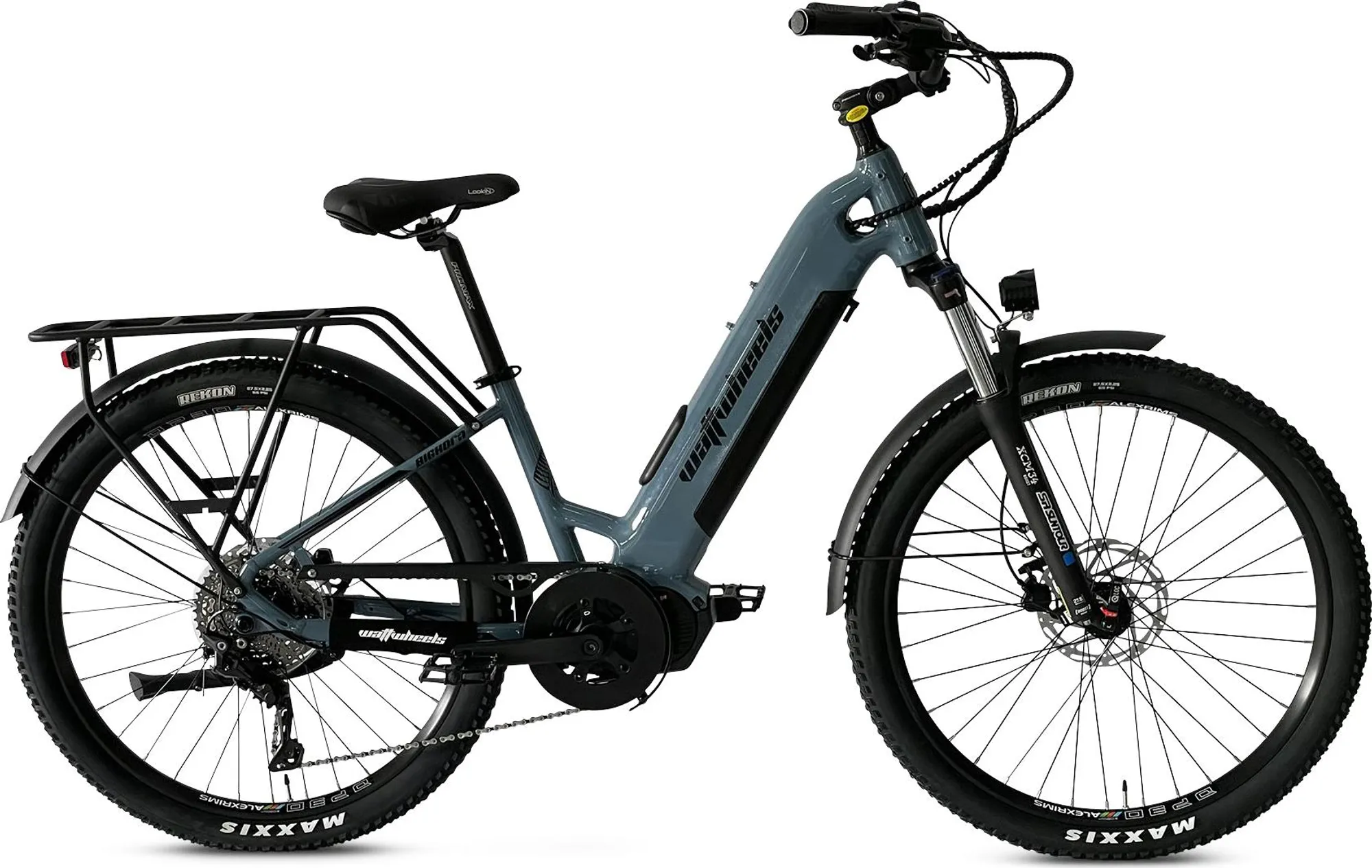

Wattwheels Bighorn LS
Rail trails or round town… The Big Horn is an excellent all-rounder bike designed for long journeys in mind.
The Bighorn LS & S are now Recommended by Consumer NZ
Discover the Bighorn LS MD by Wattwheels, an emblem of seamless urban exploration. Designed for those who crave both elegance and adventure, this e-bike embodies the essence of style in motion. Picture cruising through cityscapes, guided by Shimano's smooth-shifting Deore 10-speed, effortlessly conquering each journey. The ergonomic design, available in various frame sizes, ensures a comfortable and personalized fit for every rider. Glide over any terrain with the Suntour XCM32/34 E-Bike rated fork, while Tektro hydraulic brakes guarantee a secure stop. Elegant lines, robust components, and a whisper-quiet motor culminate in an electrifying symphony of modern commuting. Unleash your wanderlust; the Bighorn LS MD awaits to redefine your ride.
Specifications
Battery | 48V x 15Ah 720Wh |
Motor | Ananda M100 300W 120 Nm of torque |
Range (i) | 70 - 105 kms |
Bike Weight | Total 27.5 kgs = Bike Weight 24 kgs Battery Weight 3.5 kgs |
Warranty (ii) | Frame = 5 Years Motor and Battery = 2 years Other Components = 1 year |
Frame Sizes | 15", 17" and 19" |
Frame Colours | Misty Blue, Morrocan Red, Deep Sea Blue |
Tyres | Maxxis Rekon 27.5" x 2.25" - 15" & 17" frames Maxxis Rekon 29" x 2.25" - 19" frames |
Brakes | Tektro HD M285, 180 mm rotors |
Gears | Shimano Deore 11 - 34T, 10 Speed |
Drive Type | Torque sensor, 5 levels of PAS with walk assist mode |
Forks | Suntour XCM32/34 E-bike rated 100 mm travel |
Frame Material | 6061 Aluminium Alloy |
Maximum Speed | 42 kph |
Maximum Load | 120 kg - rider and bags |
Additional Features | Front and Rear Light, Front and Rear Fender Rear Rack, Kick Stand Thumb Throttle |
(i)Range is very dependent on a number of variables and the range referred to is indicative only
(ii) Relates to manufacturing fault and not "fair wear and tear"
*Specifications may change subject to availability of components at time of assembly
