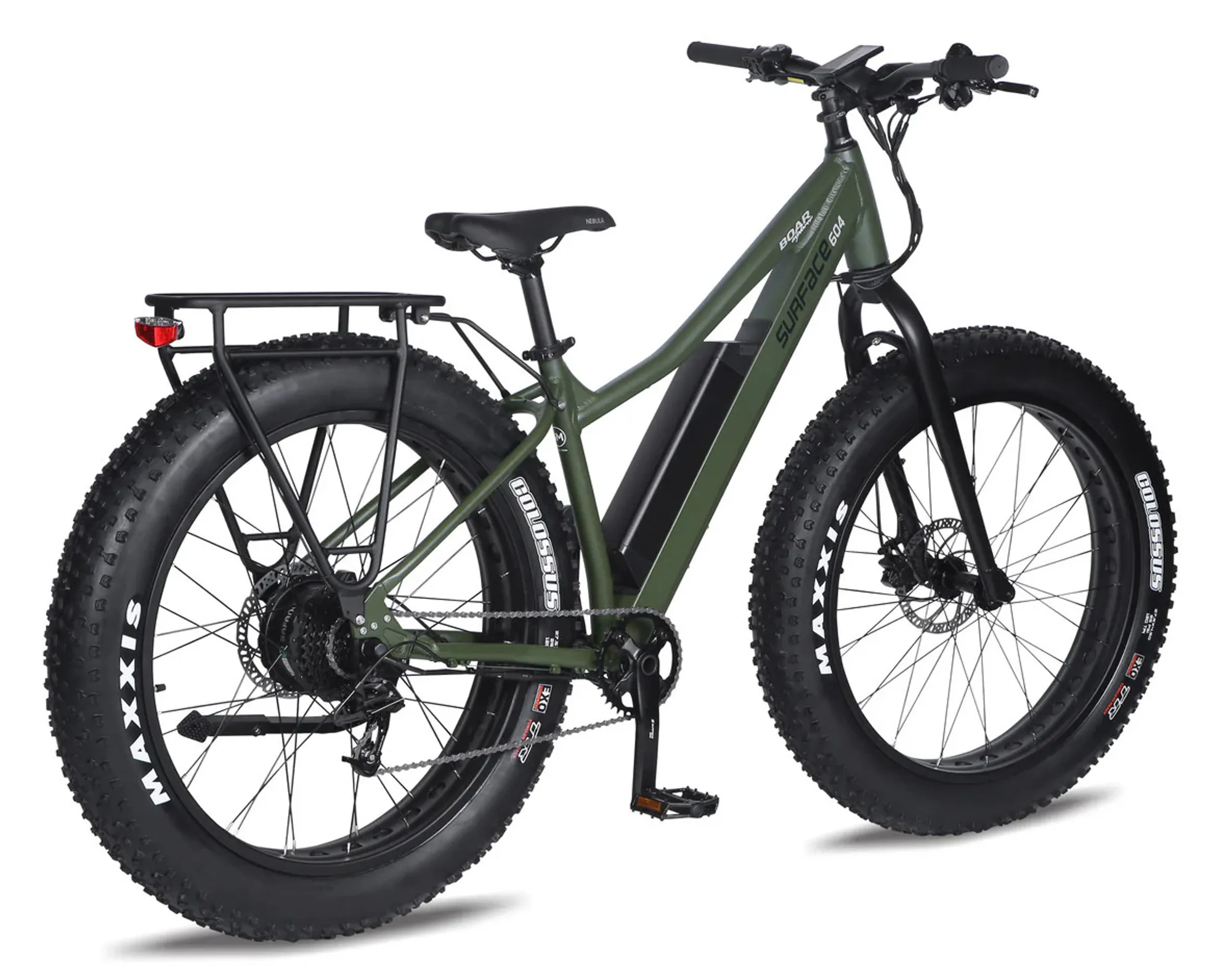

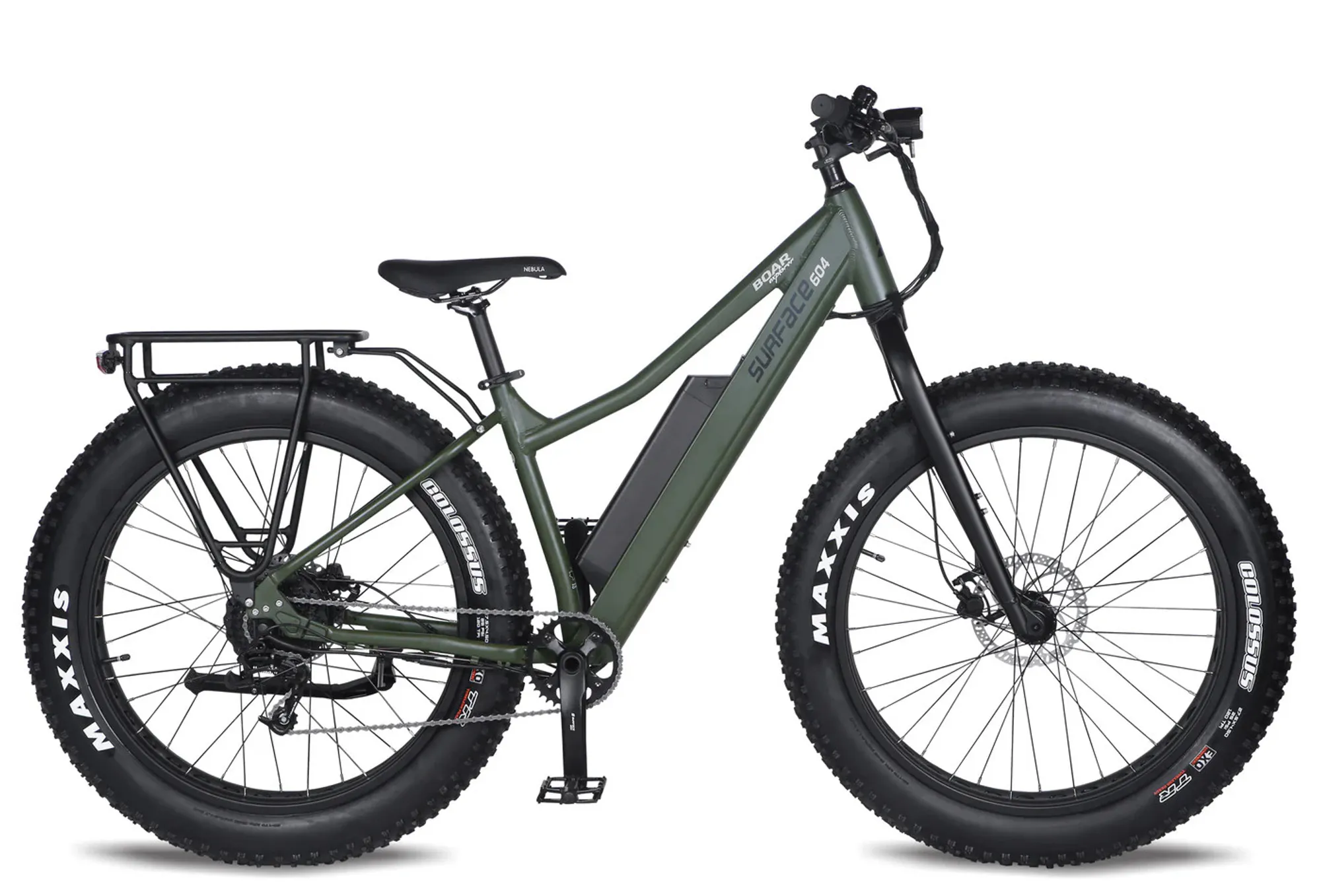

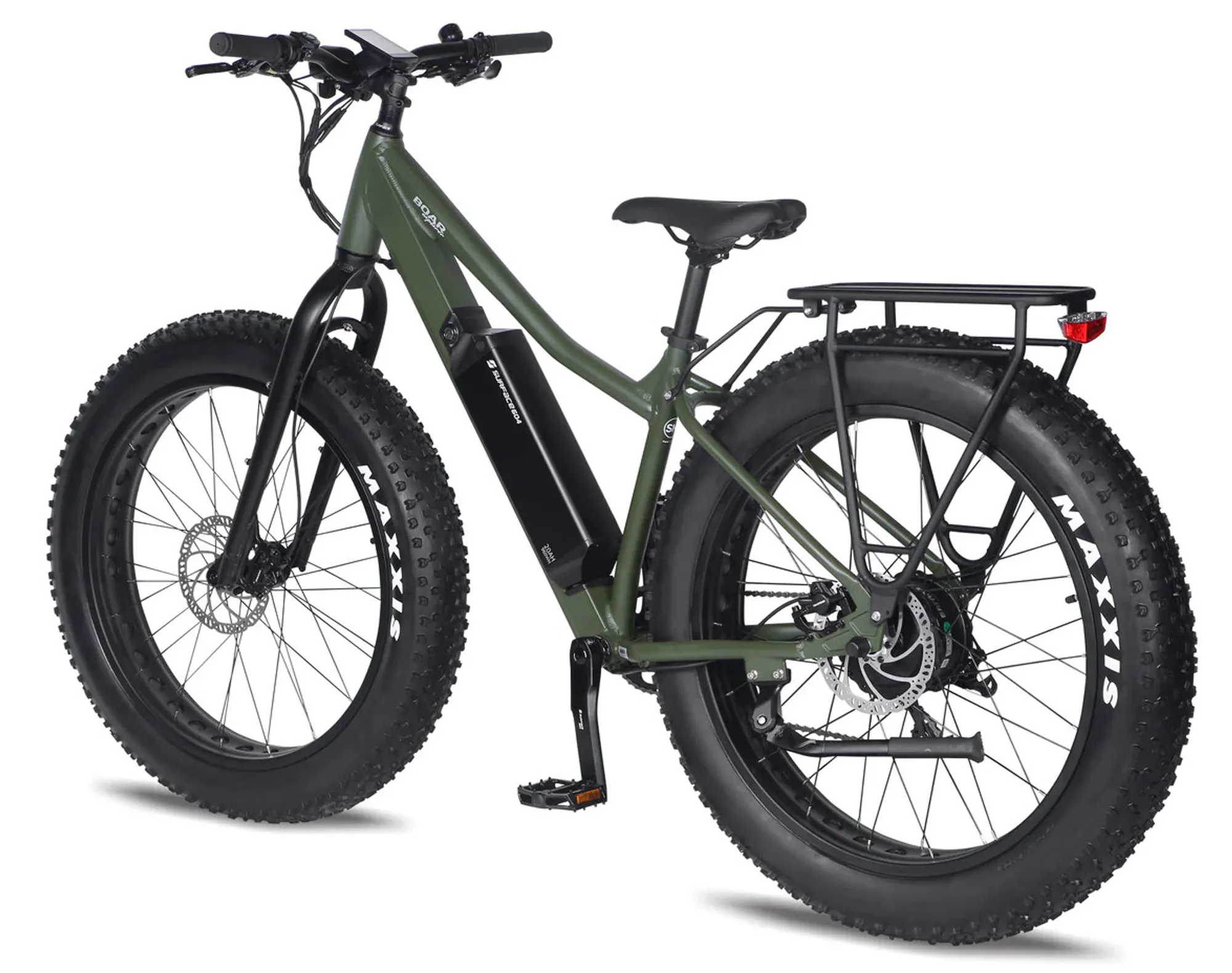

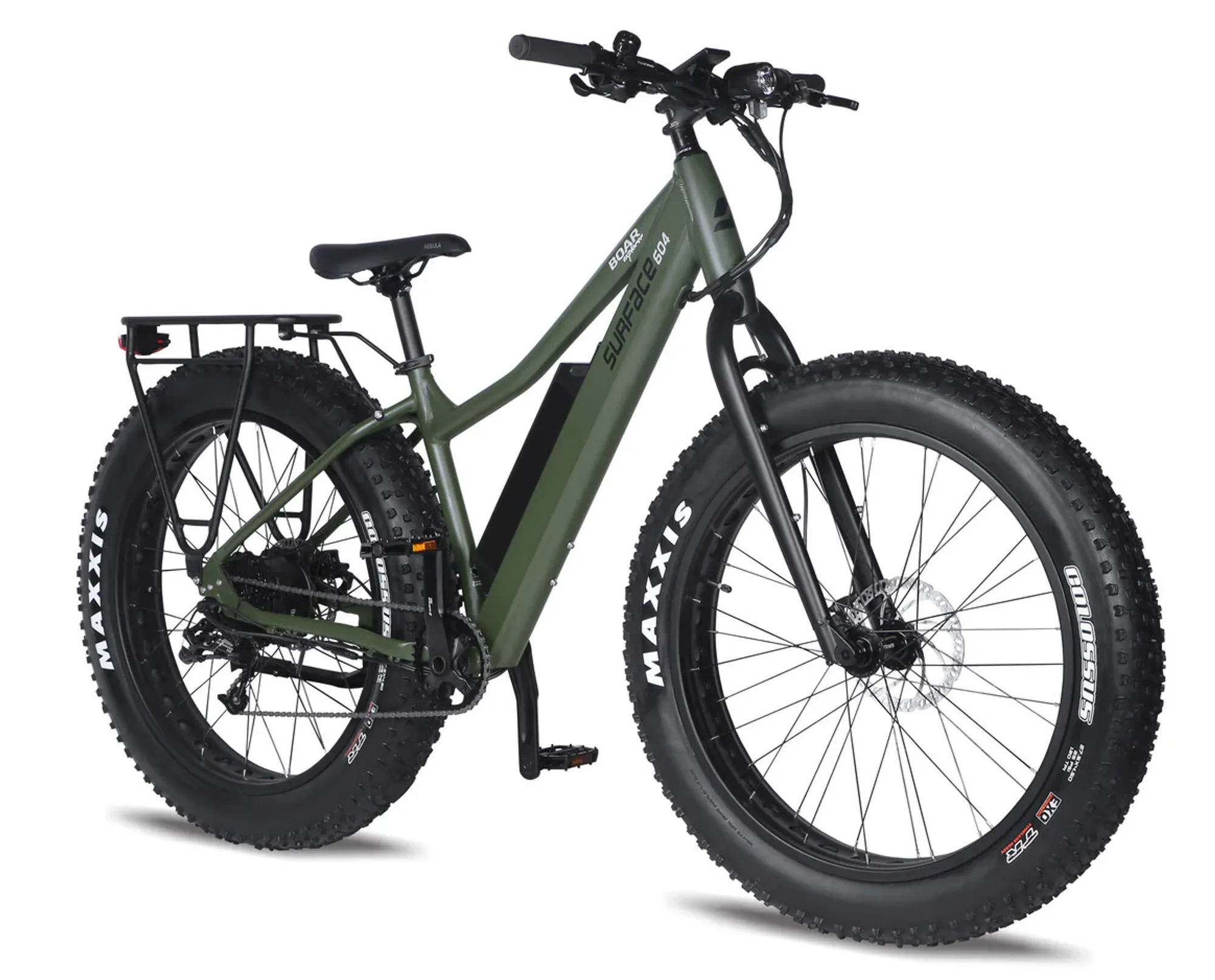

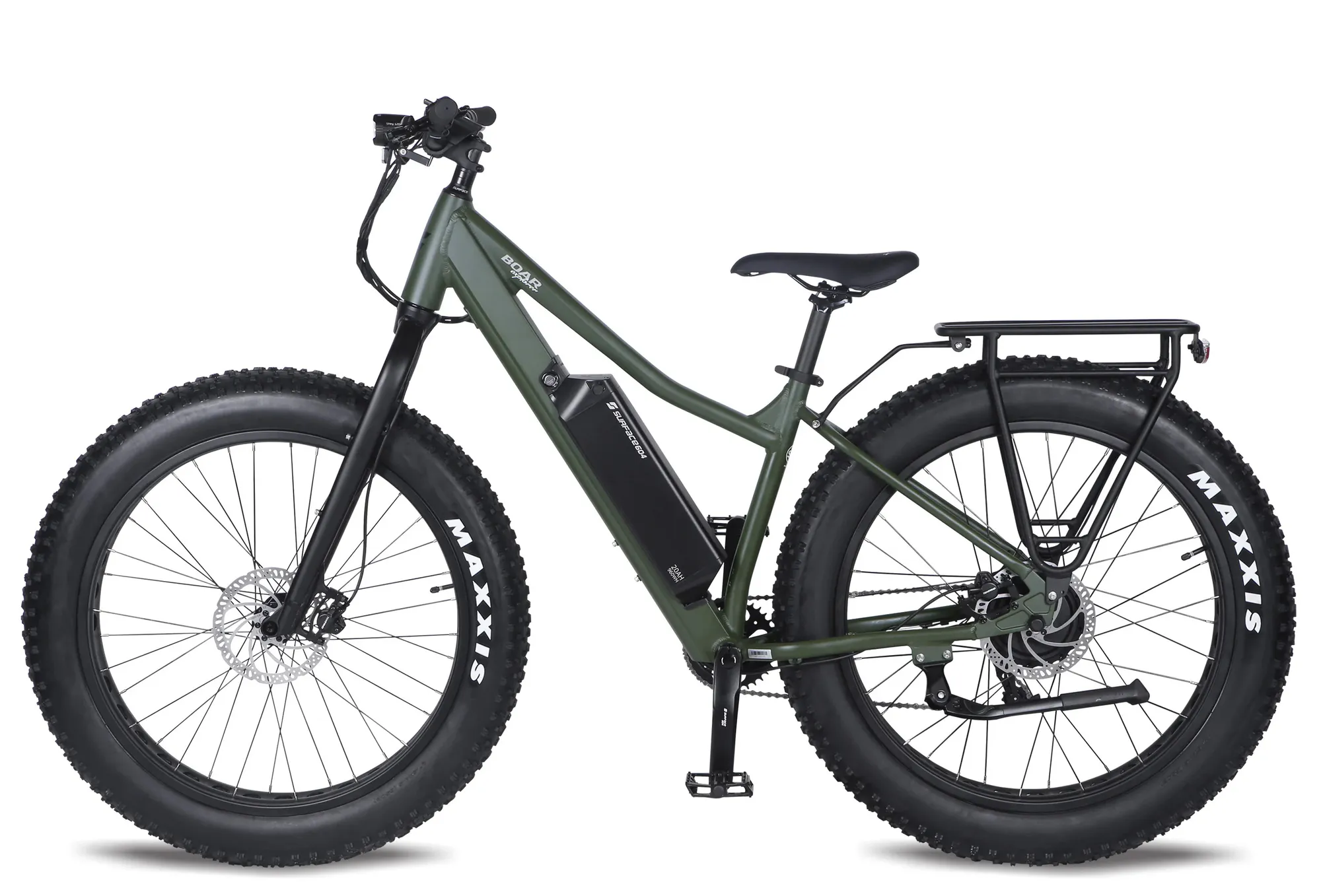

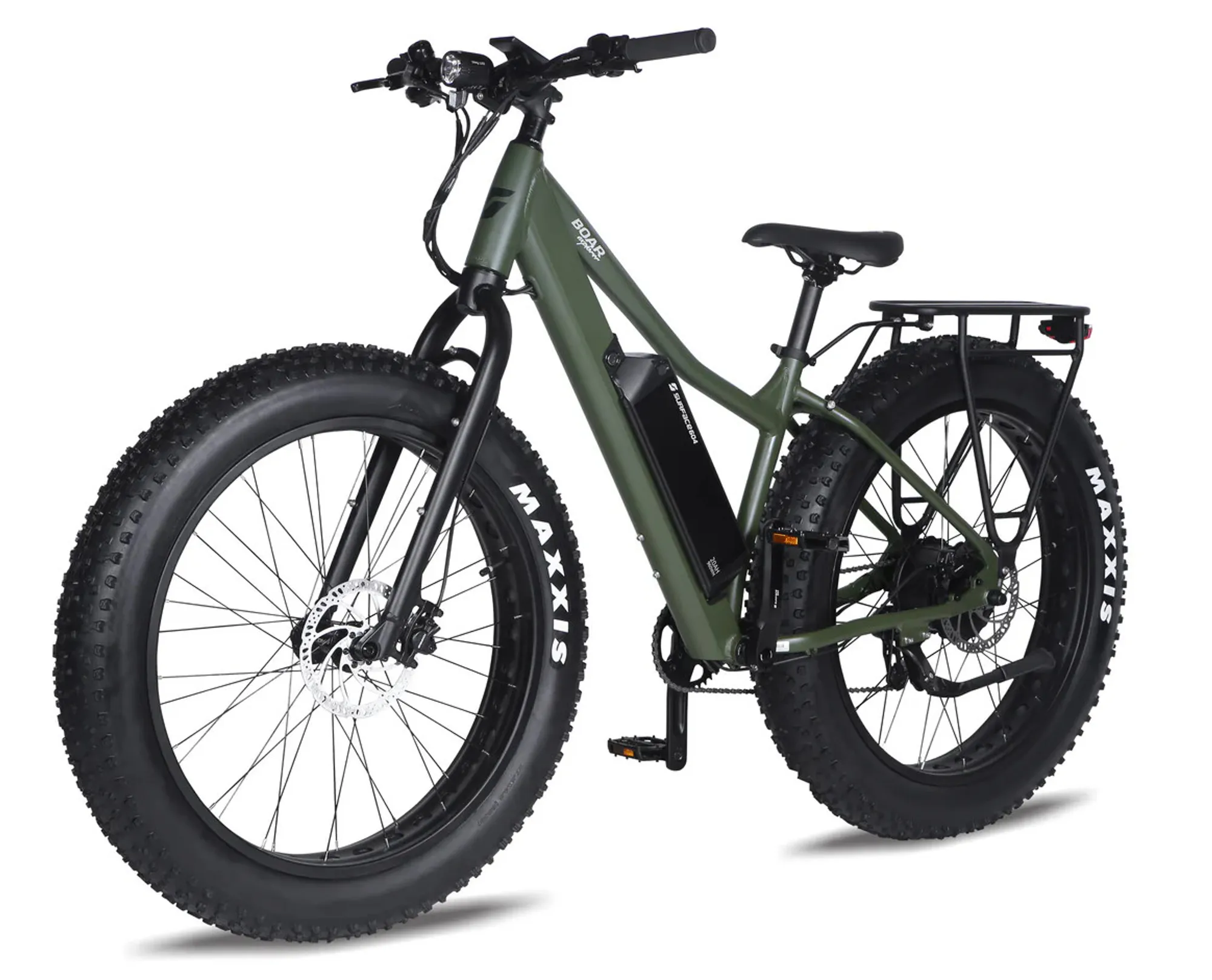

Surface 604 Boar Explorer

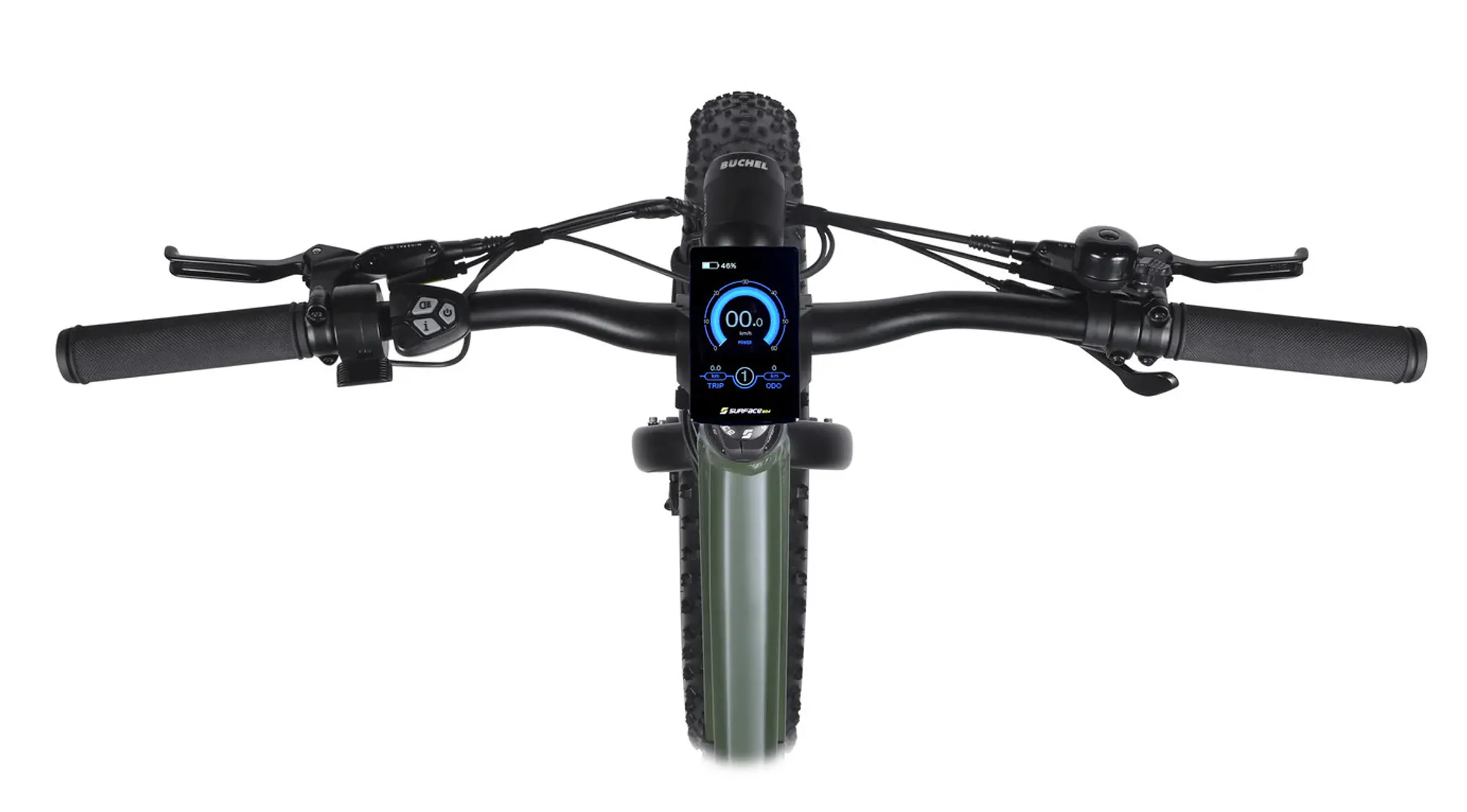

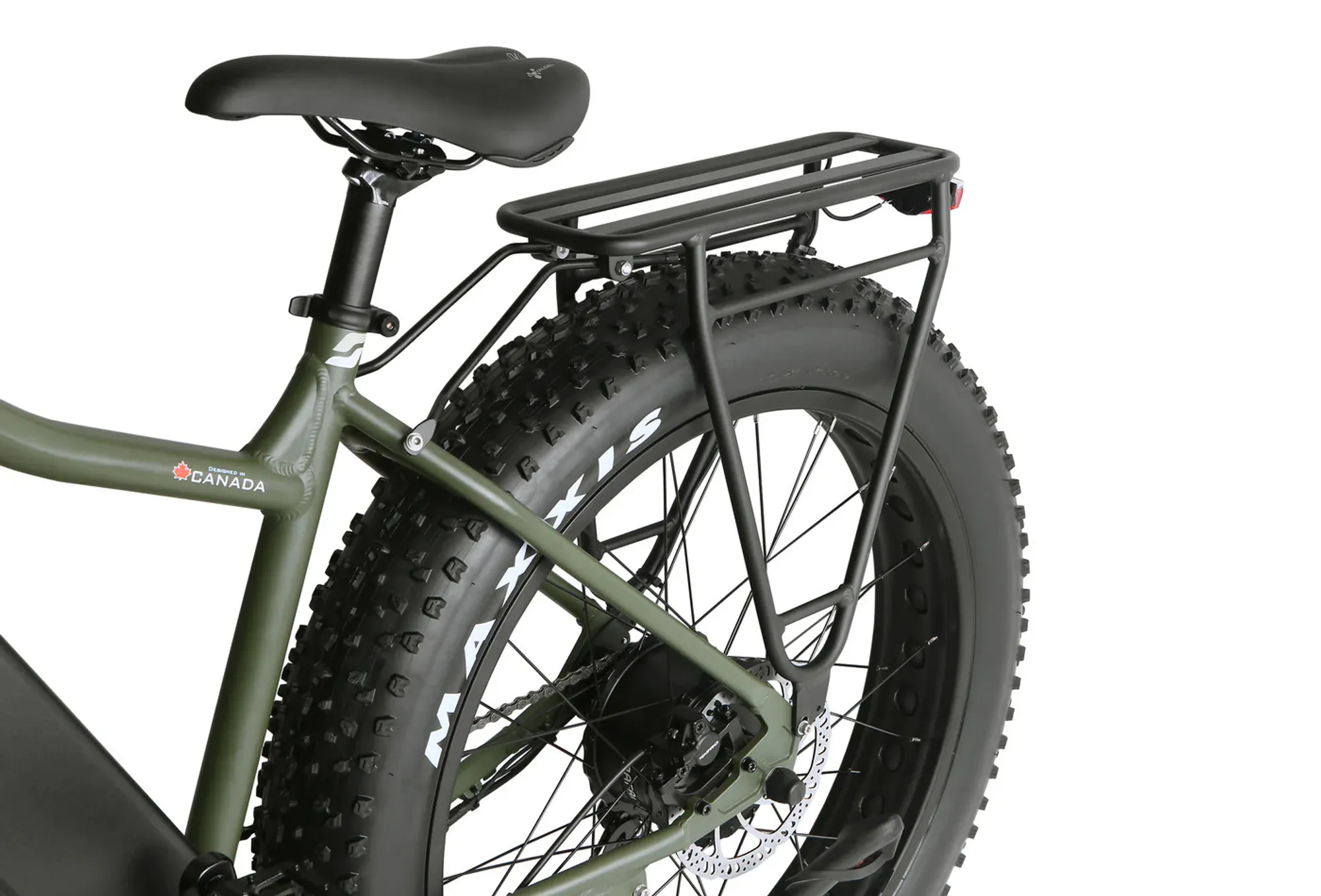

A purpose-built fat tyre electric bike designed with hunters and campers in mind. The Boar features extra-large 27.5” x 4.5” fat tyres that provide traction on loamy terrain and soft sand. The powerful fat-bike specific Bafang hub motor offers 80 Newton metres of torque that is activated quickly and naturally through the rear-mounted TMM4 torque sensor. The torque provides a very smooth power curve giving you power just when you want it. The Boar explorer also includes a full-colour LCD with five levels of pedal assist, thumb throttle and a USB port to support charging your devices in sticky situations.

Specifications

Battery	Reention 48V x 20Ah 960Wh or 48V x 14Ah 672Wh
Motor	High Torque Fat Bike Specific Bafang Geared Hub Motor 80Nm
Range (i)	40 - 60 kms or 60 - 90kms
Bike Weight	Total 29.05Kgs = Bike Weight 25.65kgs Battery Weight 3.4kgs 14Ag, 4.7kgs 20Ah
Warranty (ii)	Frame = 5 Years Motor and Battery = 2 years Other Components = 1 year
Frame Sizes	SM, ML
Frame Colours	Green

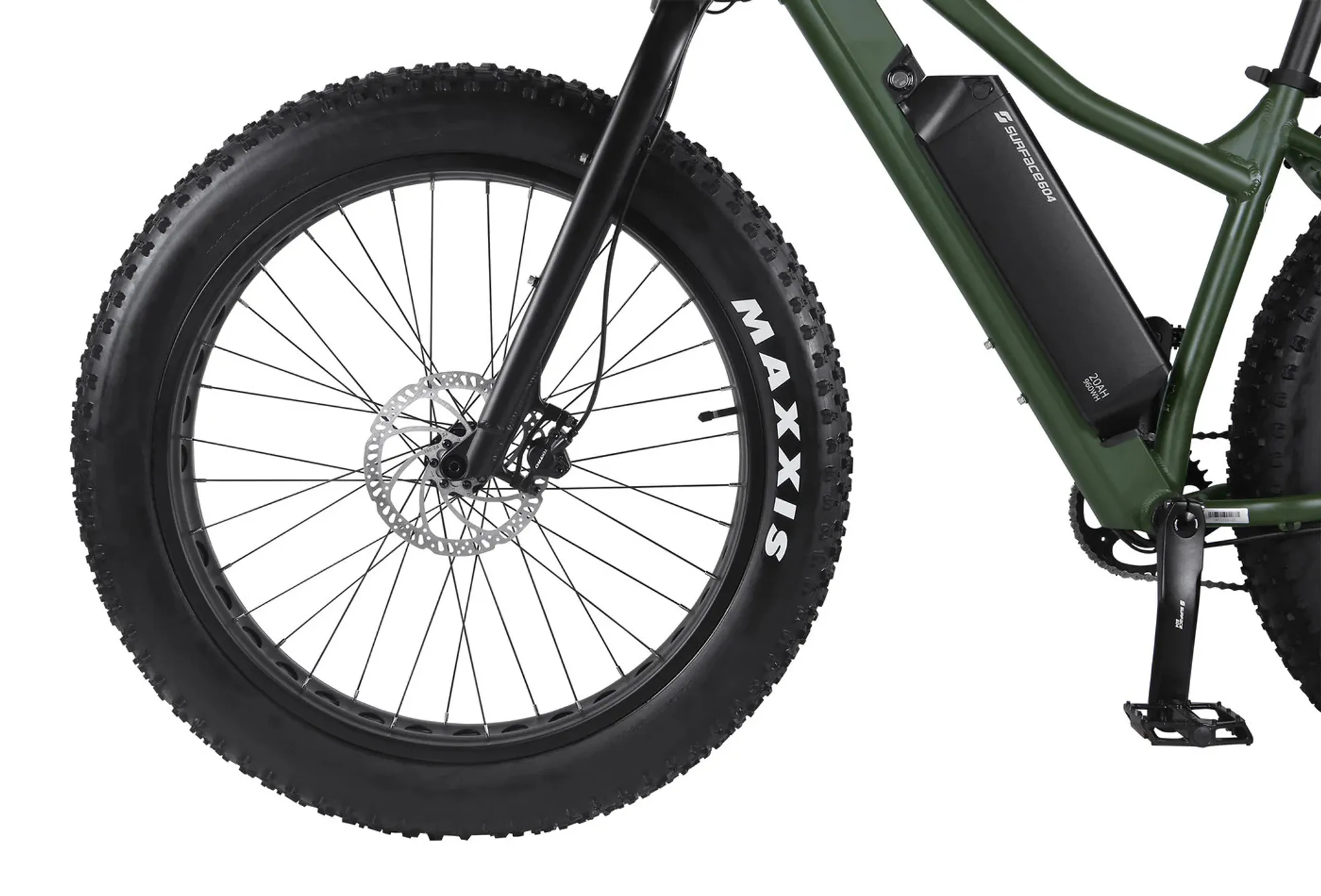

Tyres	Maxxis Colossus 27.5" x 4.5" EXO Protection
Brakes	Tektro Auriga HD E-500
Gears	Sram X5, 9 Speed 11 - 34T
Drive Type	Torque sensor, 5 levels of PAS with walk assist mode
Forks	Proprietary Design Straight Steerer
Frame Material	6061 Aluminium Alloy
Maximum Speed	32kph
Maximum Load	120 kg - rider and bags
Additional Features	Front Light - Ambient Sensor, Thumb Throttle

(i)Range is very dependent on a number of variables and the range  referred to is indicative only
(ii) Relates to manufacturing fault and not "fair wear and tear"
*Specifications may change subject to availability of components at time of assembly
