Amflow PX Carbon

PLEASE INQUIRE FOR AVAILABLE SIZES

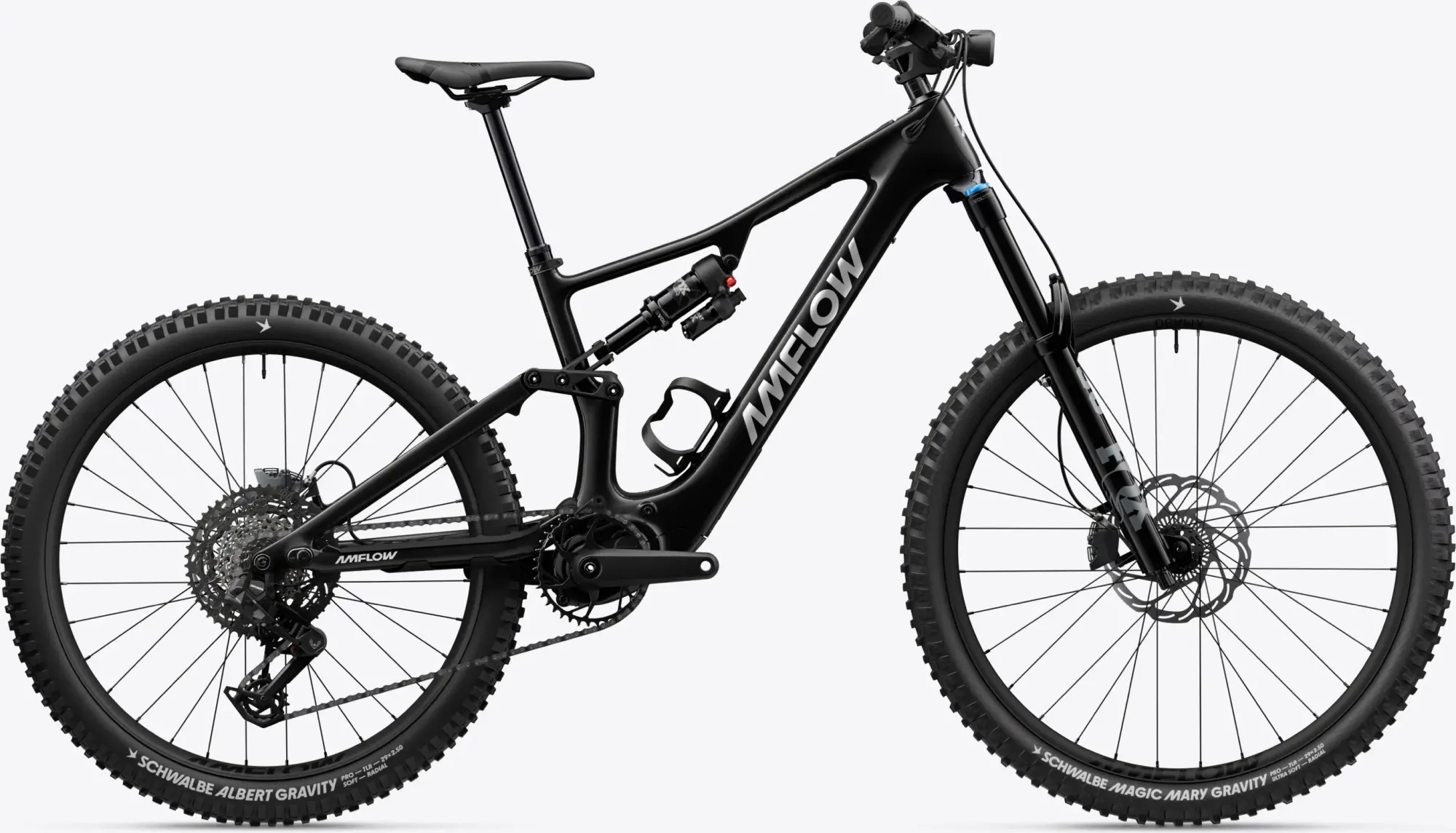

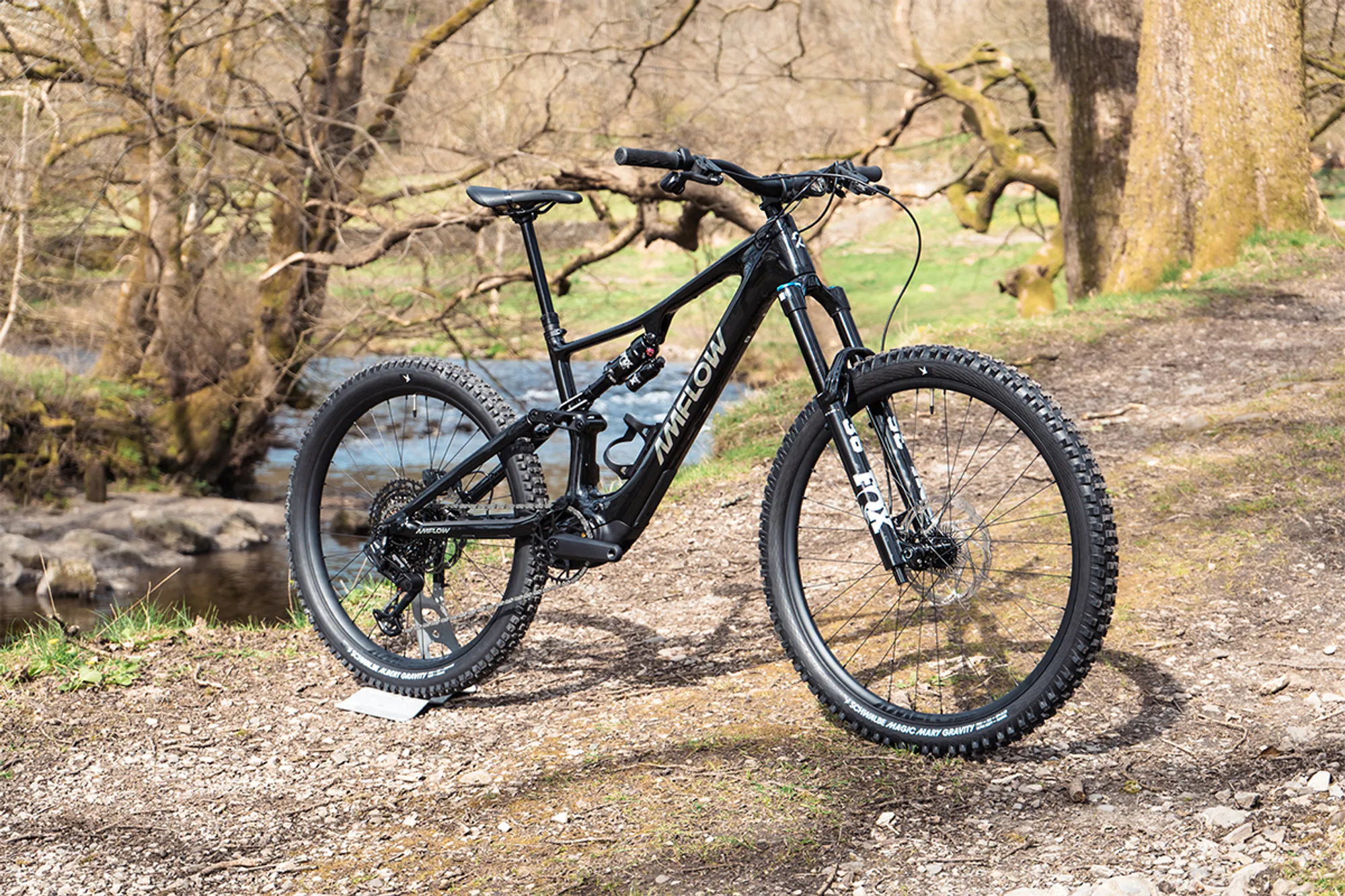

Amflow PX Carbon is a lightweight, high-power full-suspension electric mountain bike (e-MTB) powered by the second-generation DJI Avinox M2S drive system.

Size

Price

$12,199.00 NZD

The AMflow PX Carbon — a high-performance electric mountain bike engineered for riders who demand power, precision, and lightweight agility in one package.

Built around an ultra-light carbon fibre frame, the PX Carbon delivers an exceptional ride feel at just around 20.6 kg, making it one of the most agile full-power e-MTBs in its class. At its core is the advanced Avinox M2S drive system, producing up to  for effortless climbing and powerful acceleration when you need it most.

The integrated 700 Wh battery provides impressive range for long days on the trail, while fast-charging capability keeps downtime to a minimum. Whether you're tackling steep climbs or flowing descents, the bike’s intelligent assist system delivers smooth, natural power with multiple riding modes, including a Boost function for extra bursts on demand.

Designed for versatility, the PX Carbon features a highly adjustable geometry system with multiple configurations, allowing you to fine-tune handling for different terrains and riding styles. Premium components — including FOX suspension, Magura hydraulic disc brakes, and a mullet wheel setup — ensure confident control, traction, and stability across technical trails.

Smart technology is fully integrated, with a built-in touchscreen display, GPS navigation, app connectivity, and real-time ride data. From performance tracking to route guidance, everything you need is at your fingertips.

Battery

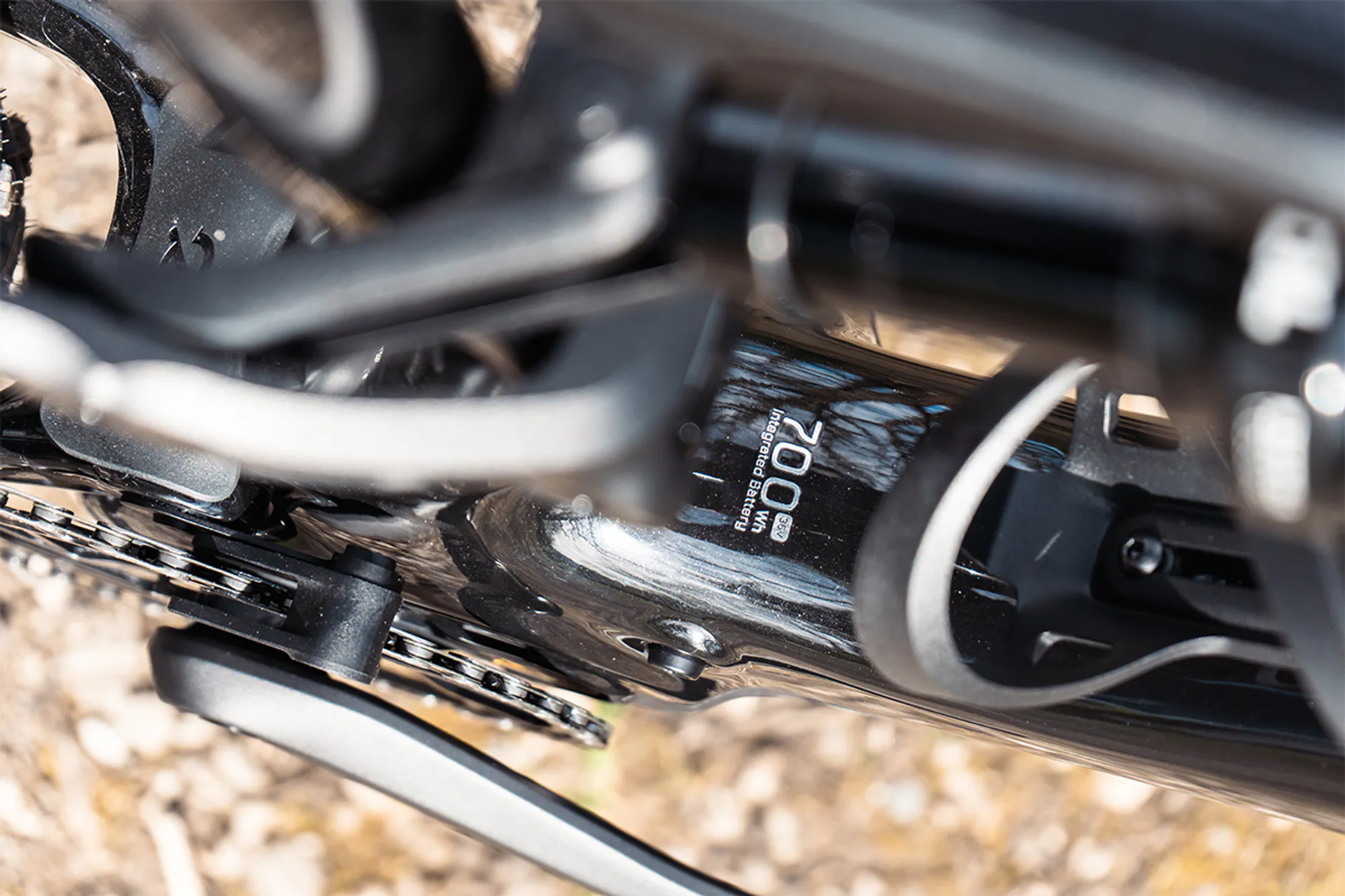

Avinox Integrated Battery 700Wh

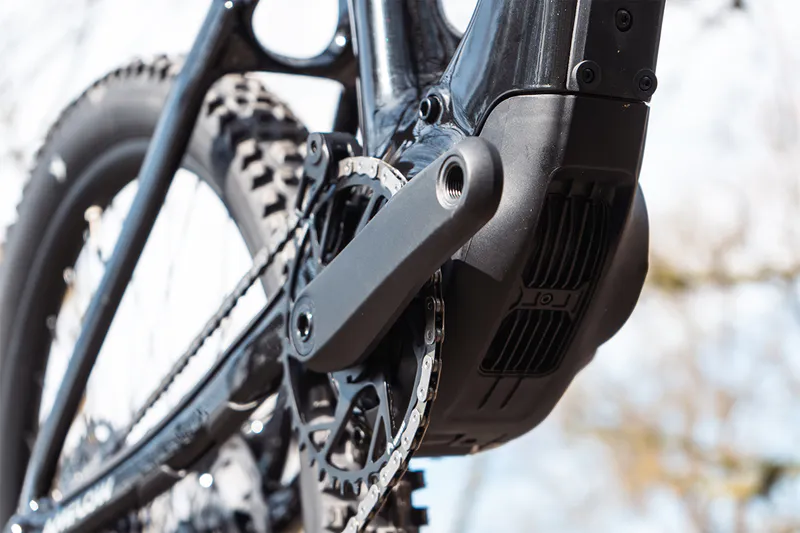

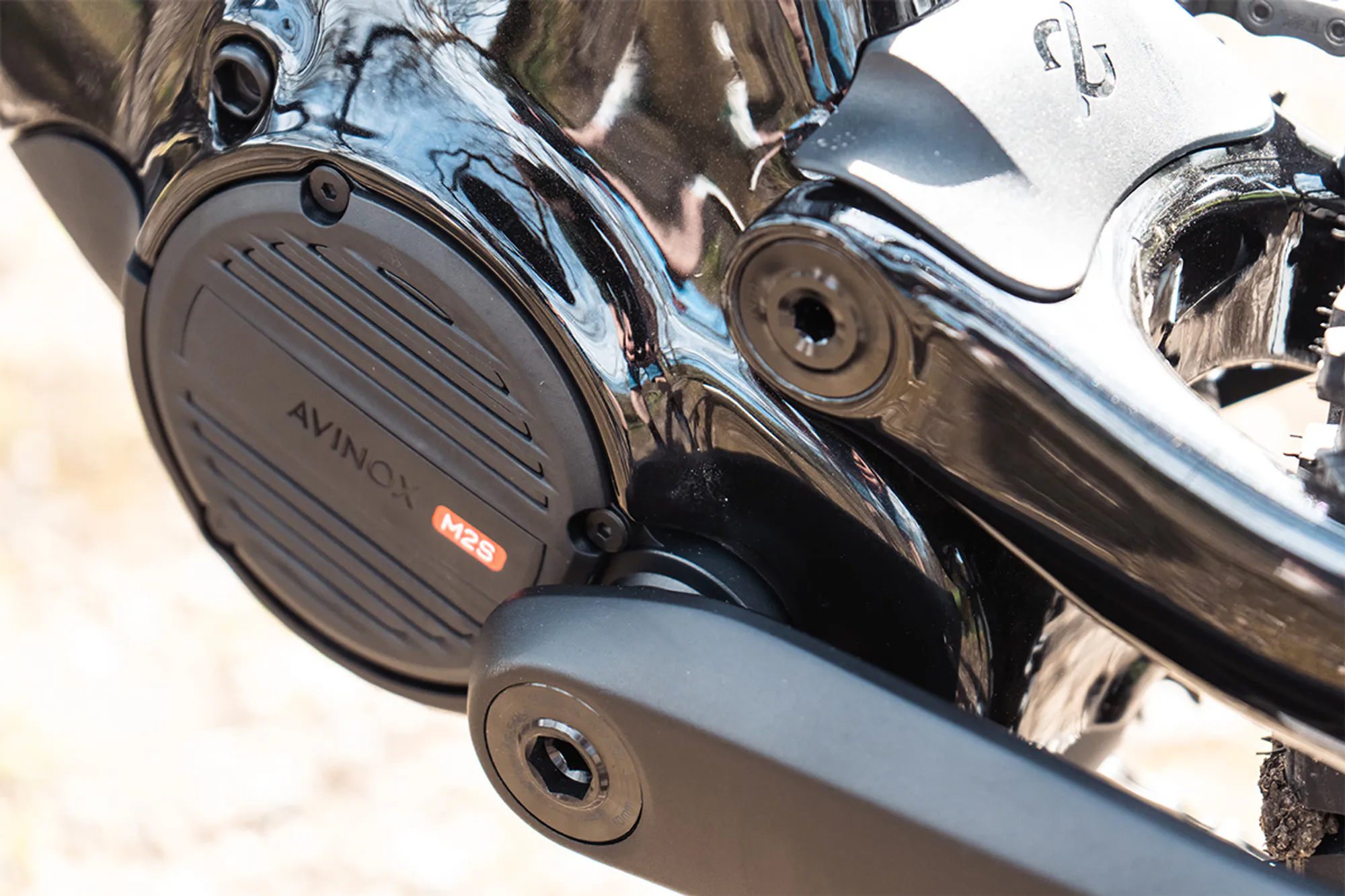

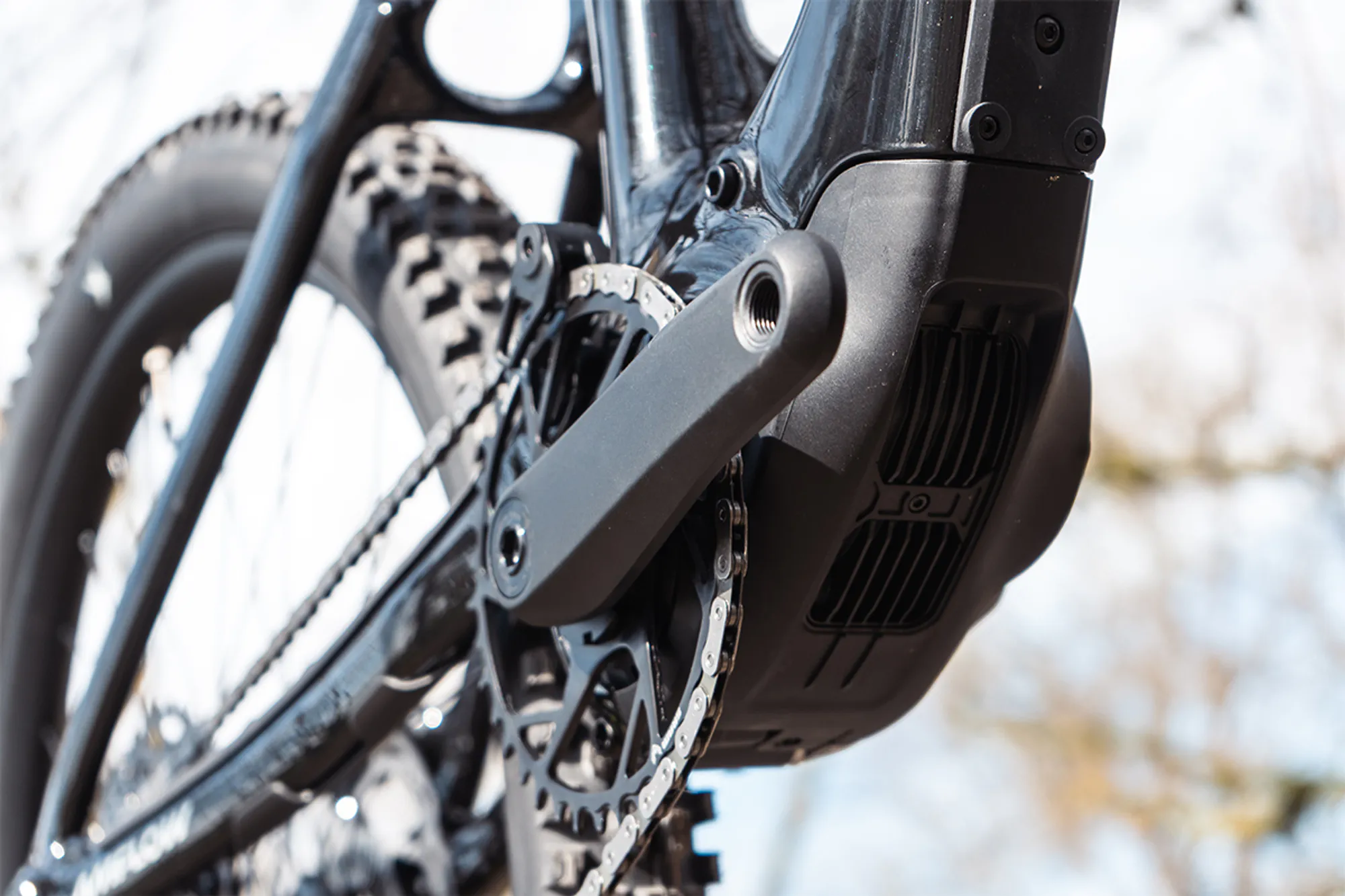

Motor Avinox M2S Drive Unit; Nominal 130Nm Peak 150Nm
Range 70-120Kms
Bike Weight Total 20.60Kgs = Bike Weight + Battery weight
Warranty

Frame = Lifetime of the original owner

Motor and Battery = 2 years

Other Components = 1 year

Frame Sizes MD, LG, XL, XXL
Frame Colours Phantom Black

Tyres

Front - Schwalbe Magic Mary Radial 29" x 2.5" TR

Rear - Schwalbe Albert Radial 27.5" x 2.5" TR

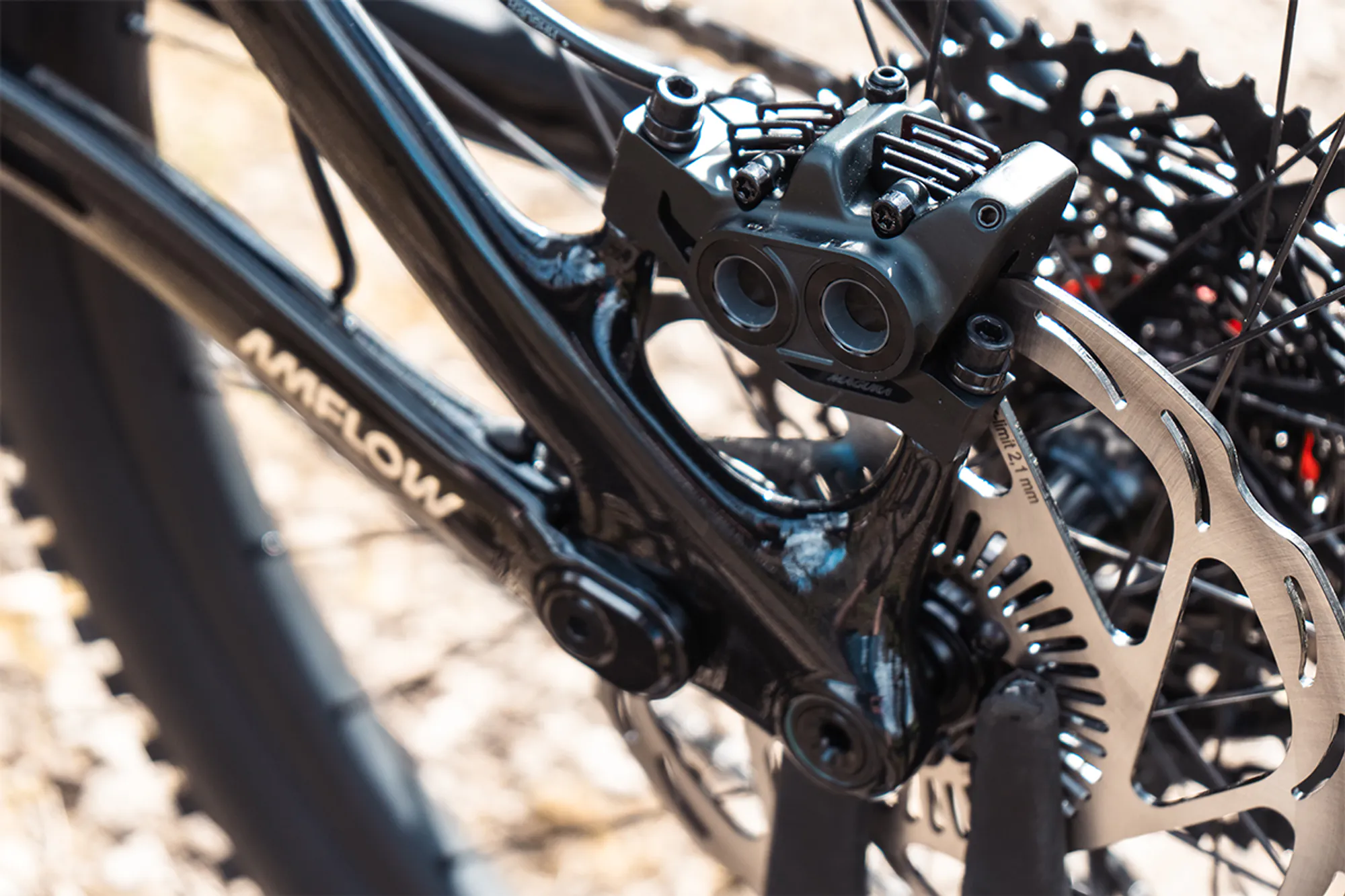

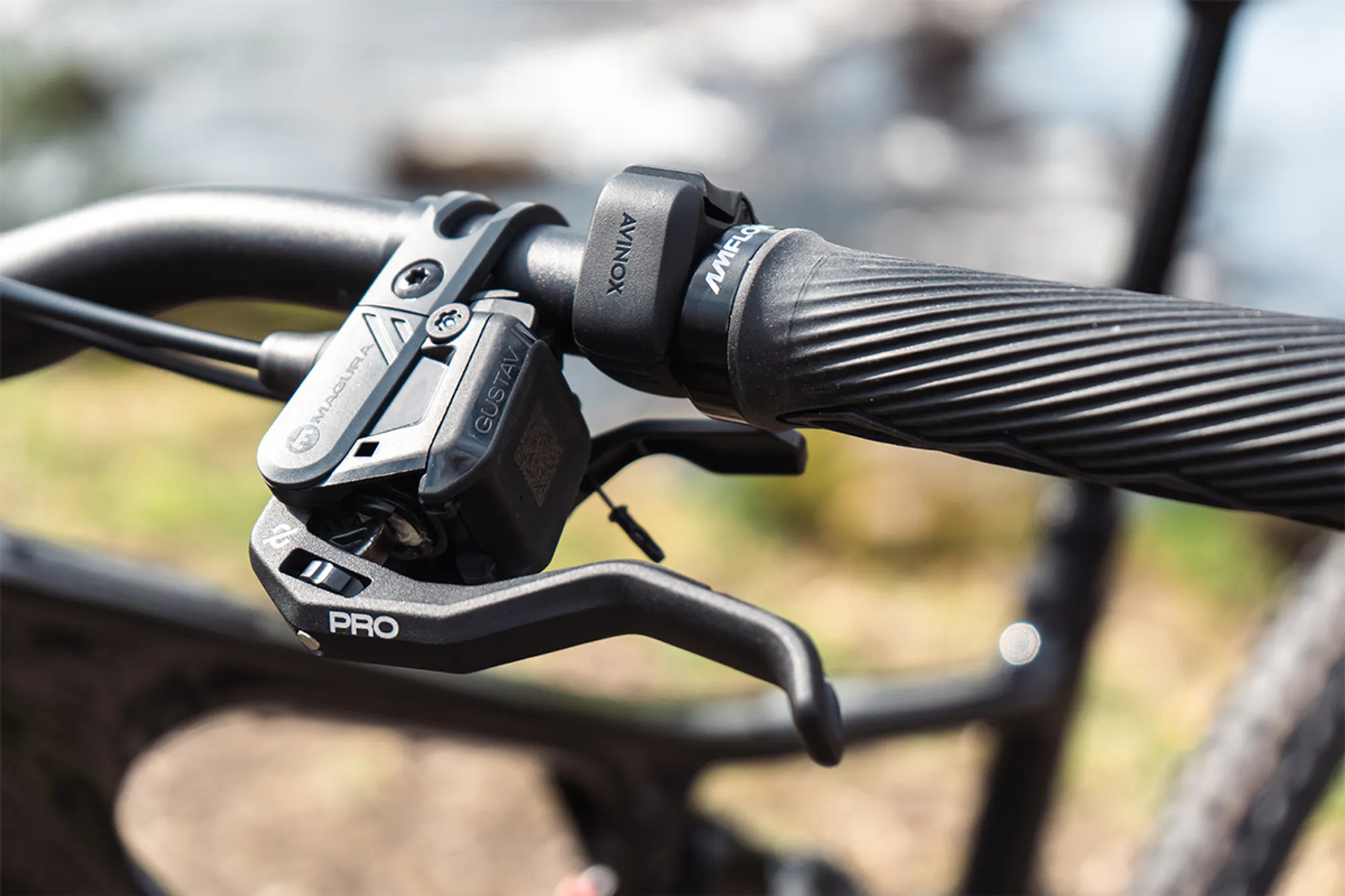

Brakes Tektro TKD173, 4 piston Calliper
Gears Sram XS-1270 Eagle 10-52T
Drive Type Torque sensor, 4 levels of PAS with walk assist mode
Forks

Front - Fox 36 Performance 160mm Travel

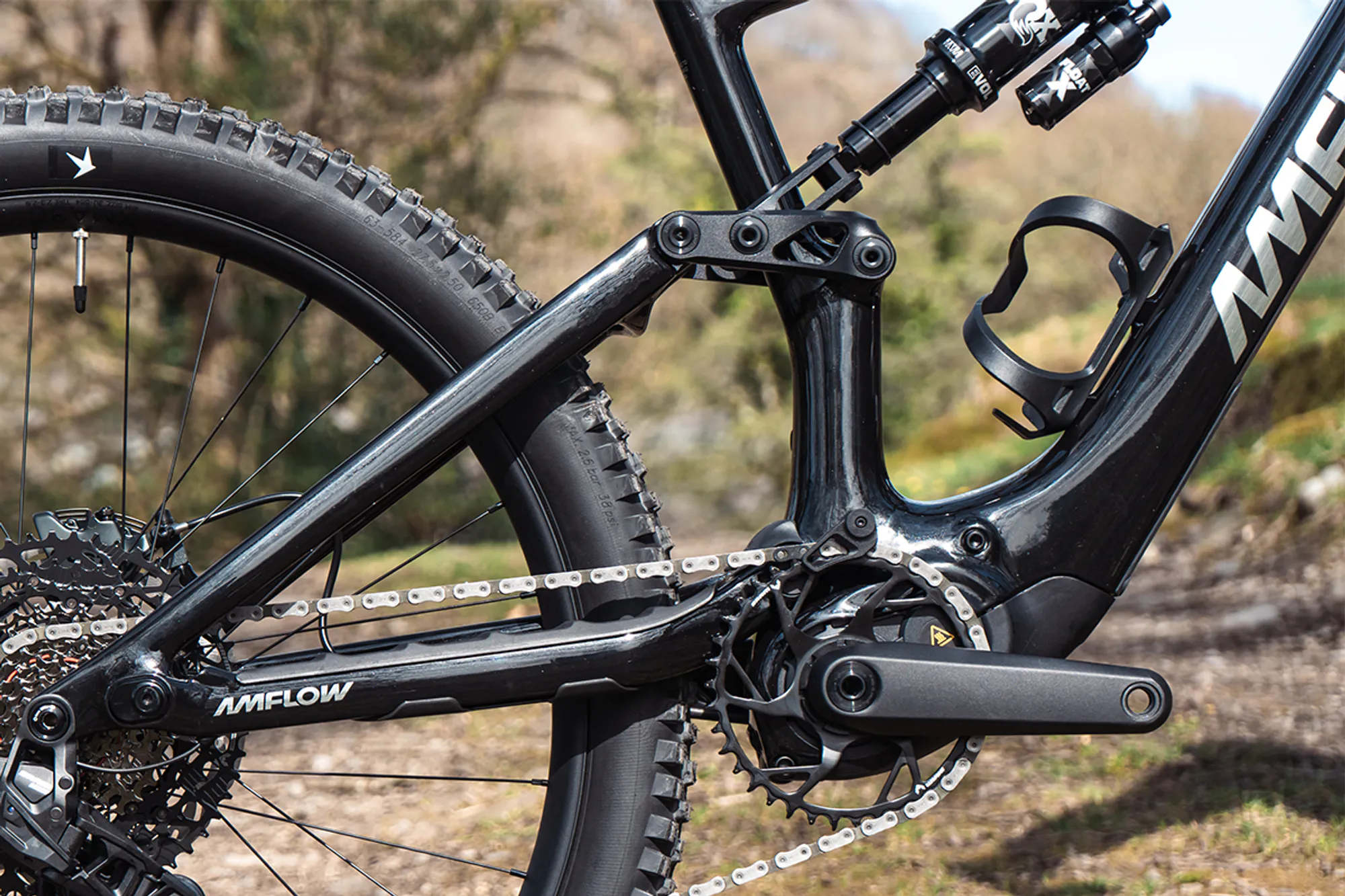

Rear - Fox Float X Performance

Frame Material Amflow PX Carbon Frame
Maximum Speed 45Kph NZ
Maximum Load 120kg
Additional Features

Dropper seat post

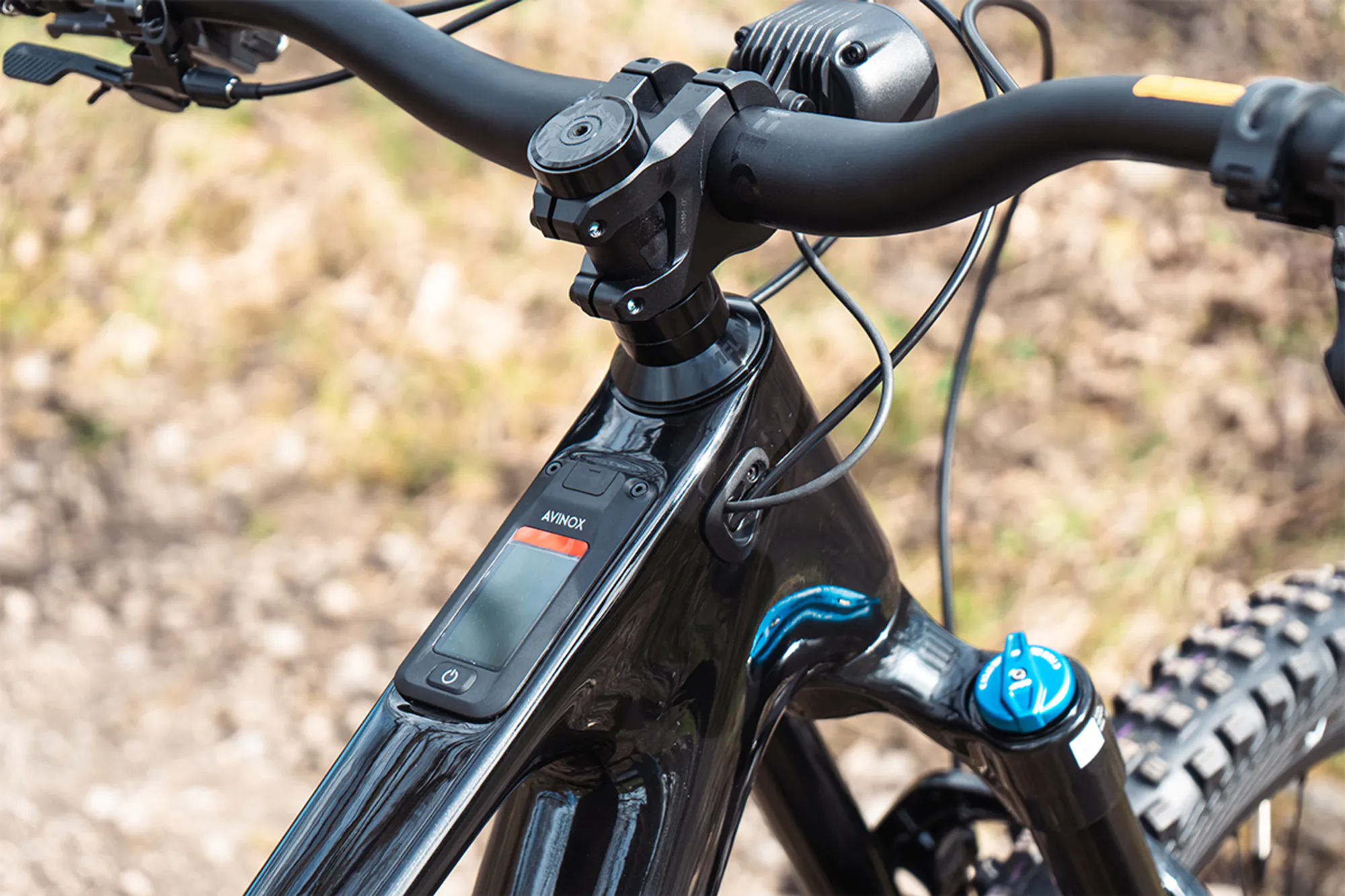

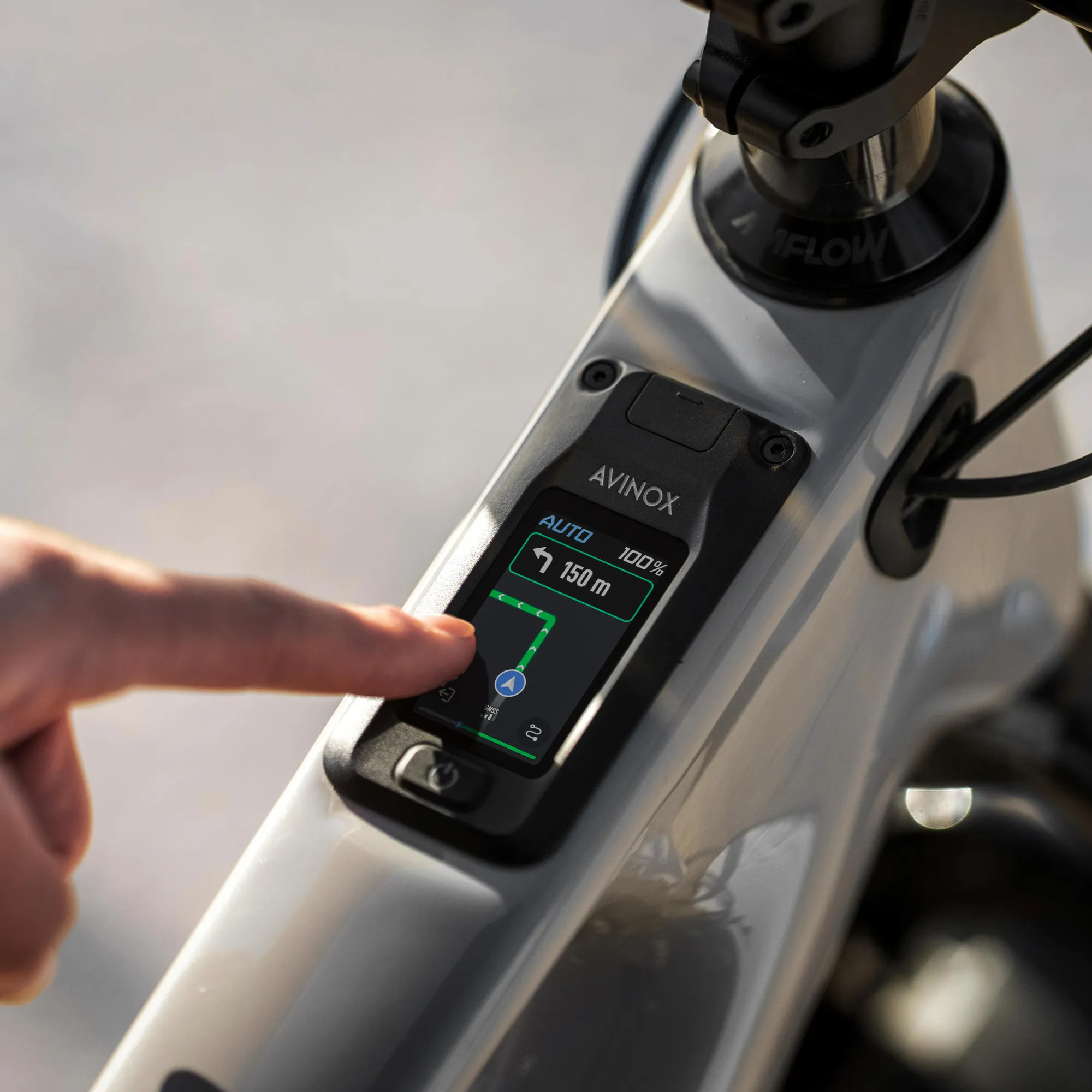

Avinox Screen - 2" OLED Control Display

Avinox Fast Charger 12A/508W
