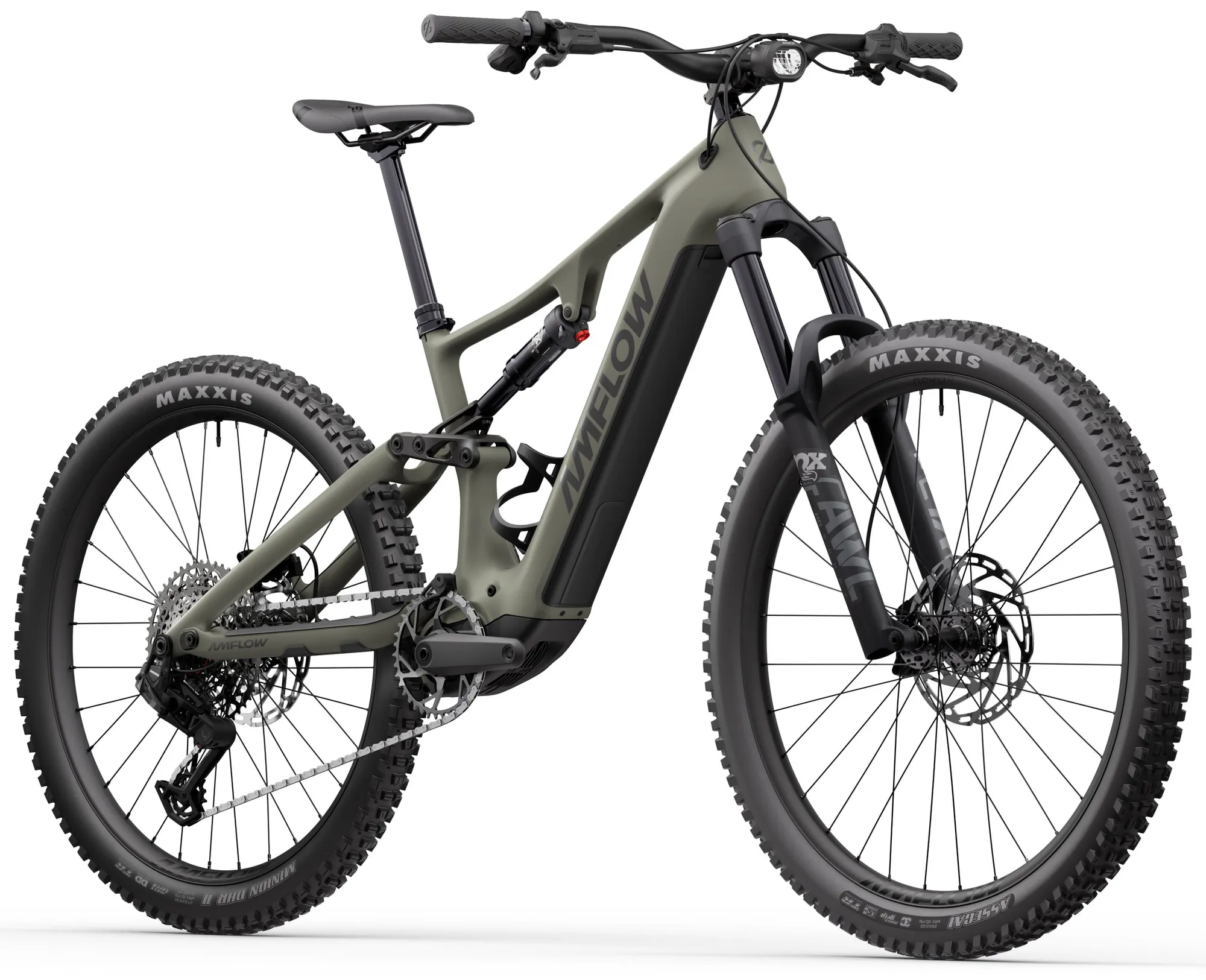

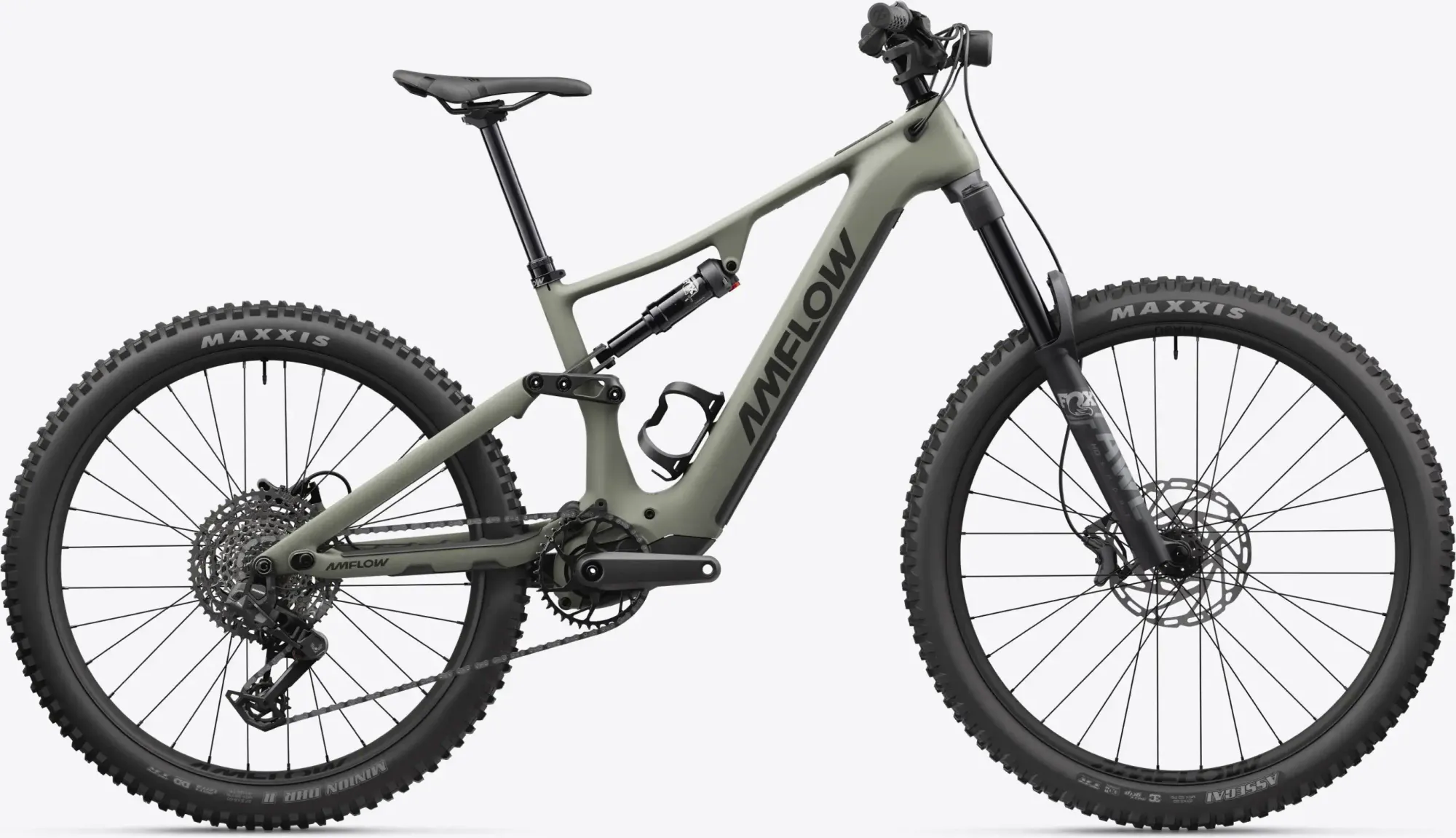

Amflow PR Carbon
The Amflow PR Carbon is a precision‑engineered high‑performance eMTB built for riders who demand dynamic trail capability without compromise. Powered by the responsive Avinox M2 motor, it delivers 125 Nm of peak torque, intuitive support and confident traction across technical terrain, all wrapped in an ultra‑light 2.9 kg carbon frame that keeps total system weight under 22 kg. With a fully integrated, removable battery for real‑world practicality and a chassis shaped around its motor platform, the PR Carbon balances agility, power, and control for riders chasing their best rides yet.
|
Battery |

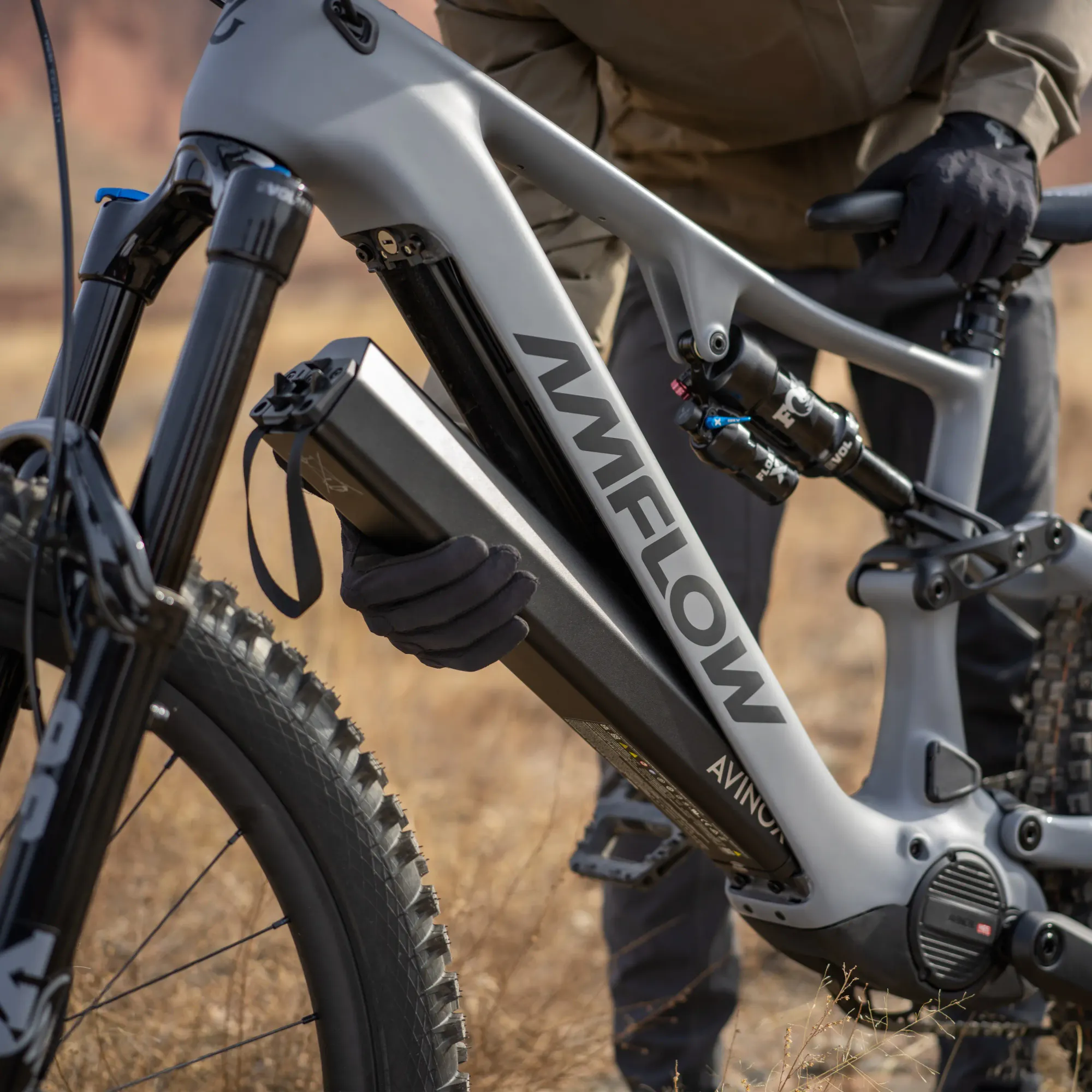

Avinox Removable Battery 800Wh |

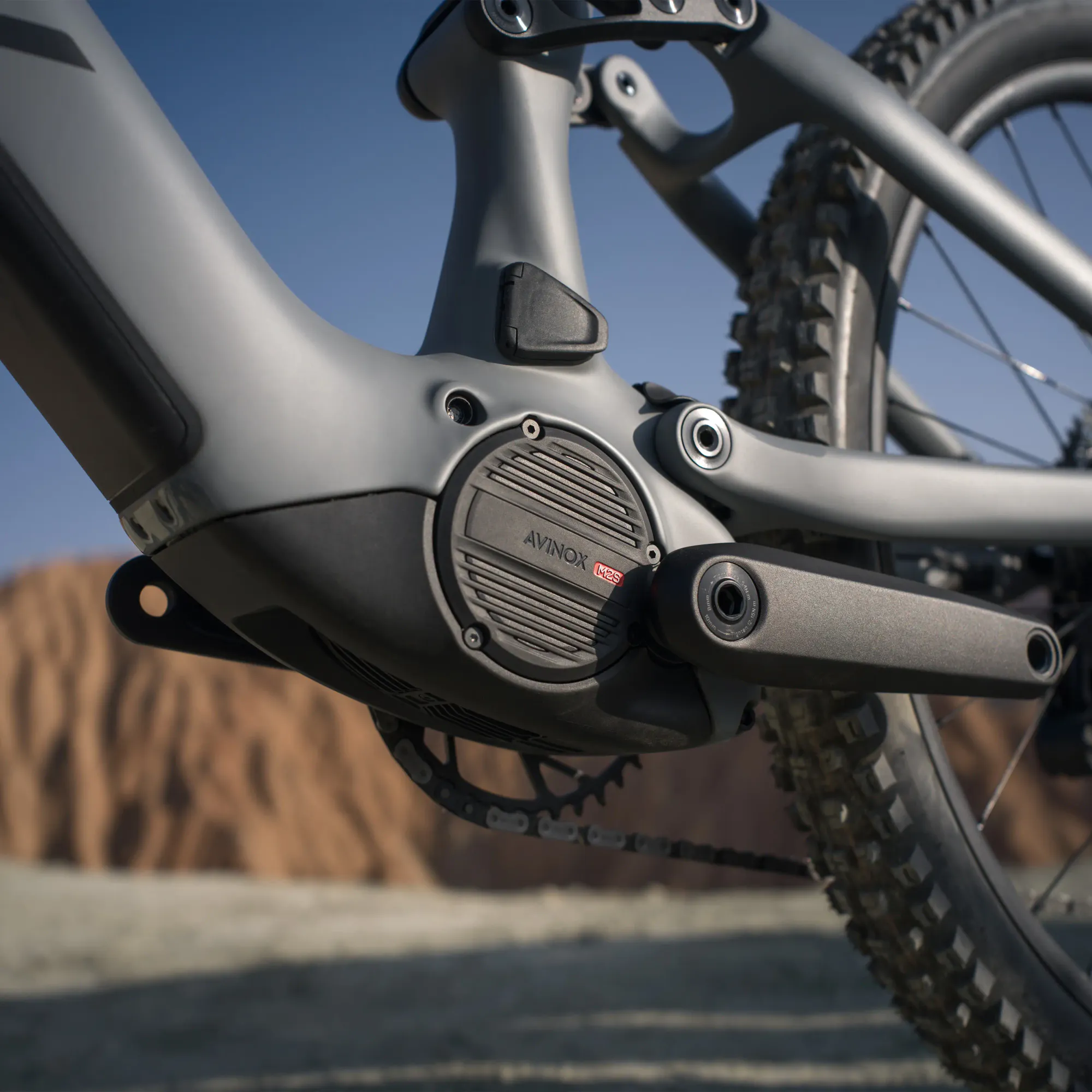

| Motor | Avinox M2 Drive Unit; Nominal 110Nm Peak 125Nm |
| Range | 80-120kms |
| Bike Weight | Total 26.60kgs = Bike Weight 22.1kgs + Battery weight 4.50kgs |
| Warranty |
Frame = 5 years for the original owner Motor and Battery = 2 years Other Components = 1 year
|
| Frame Sizes | MD, LG, XL, XXL |
| Frame Colours | Moss Green |
| Tyres |
Front - Maxxis Assegai Radial, 29" x 2.5" TR Rear - Maxxis DHR 11 27.5" x 2.5" TR |
| Brakes | Tektro TKD173 Hydraulic Disc, 203mm rotor |
| Gears | Sram XS-1270 Eagle 10-52T |
| Power modes | Torque Sensor, 4 levels of PAS with walk assist mode |
| Forks |
Front - Fox AWL HD Sport 160mm travel Rear - Fox Float Rhythm |
| Frame Material | Carbon |
| Maximum Speed | 45kph NZ |
| Maximum Load | 120kg |
| Additional Features |

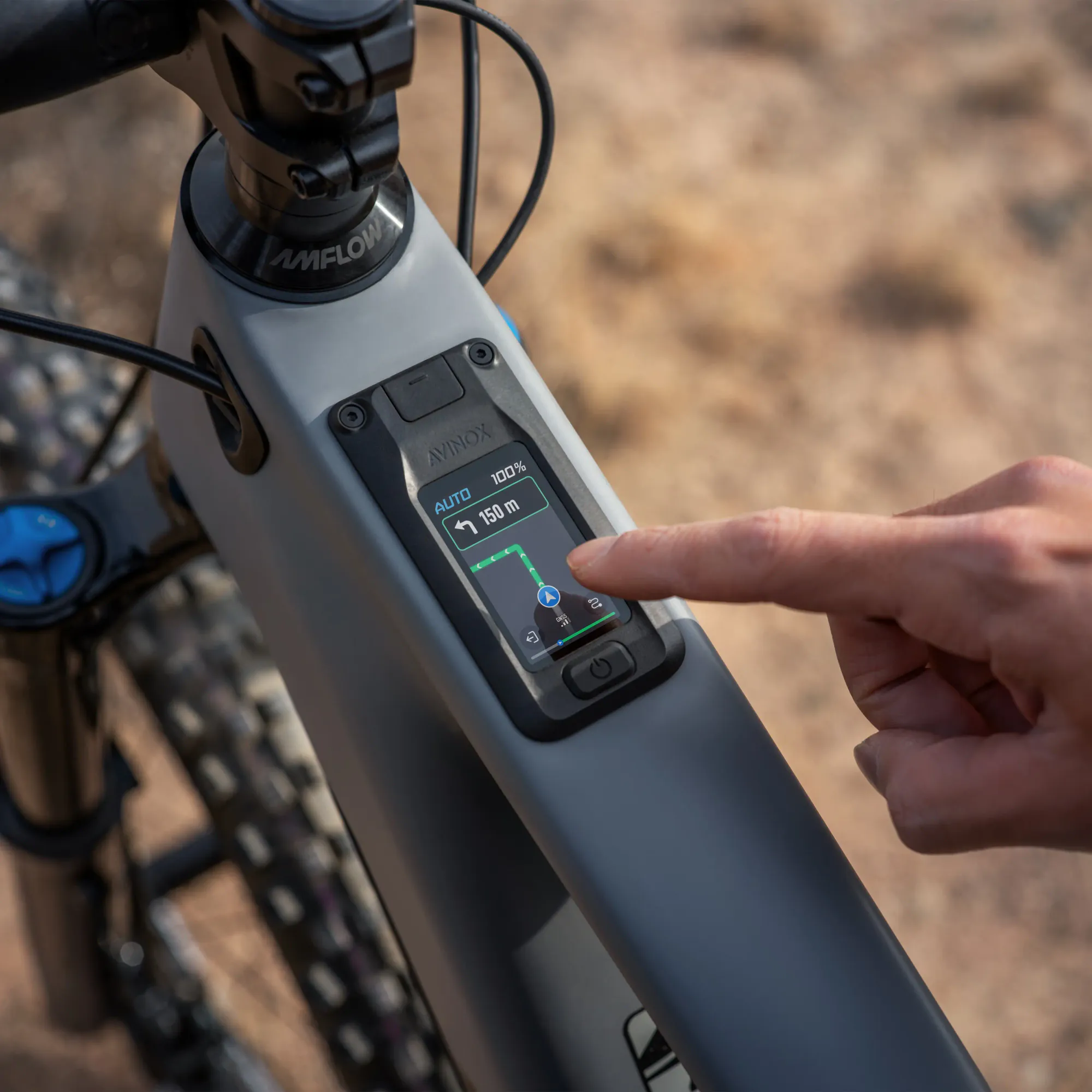

Dropper seat post Avinox Screen - 2" OLED Control Display Avinox Fast Charger 12A/508W Avinox Front and Rear Light Amflow Bottle Cage |
