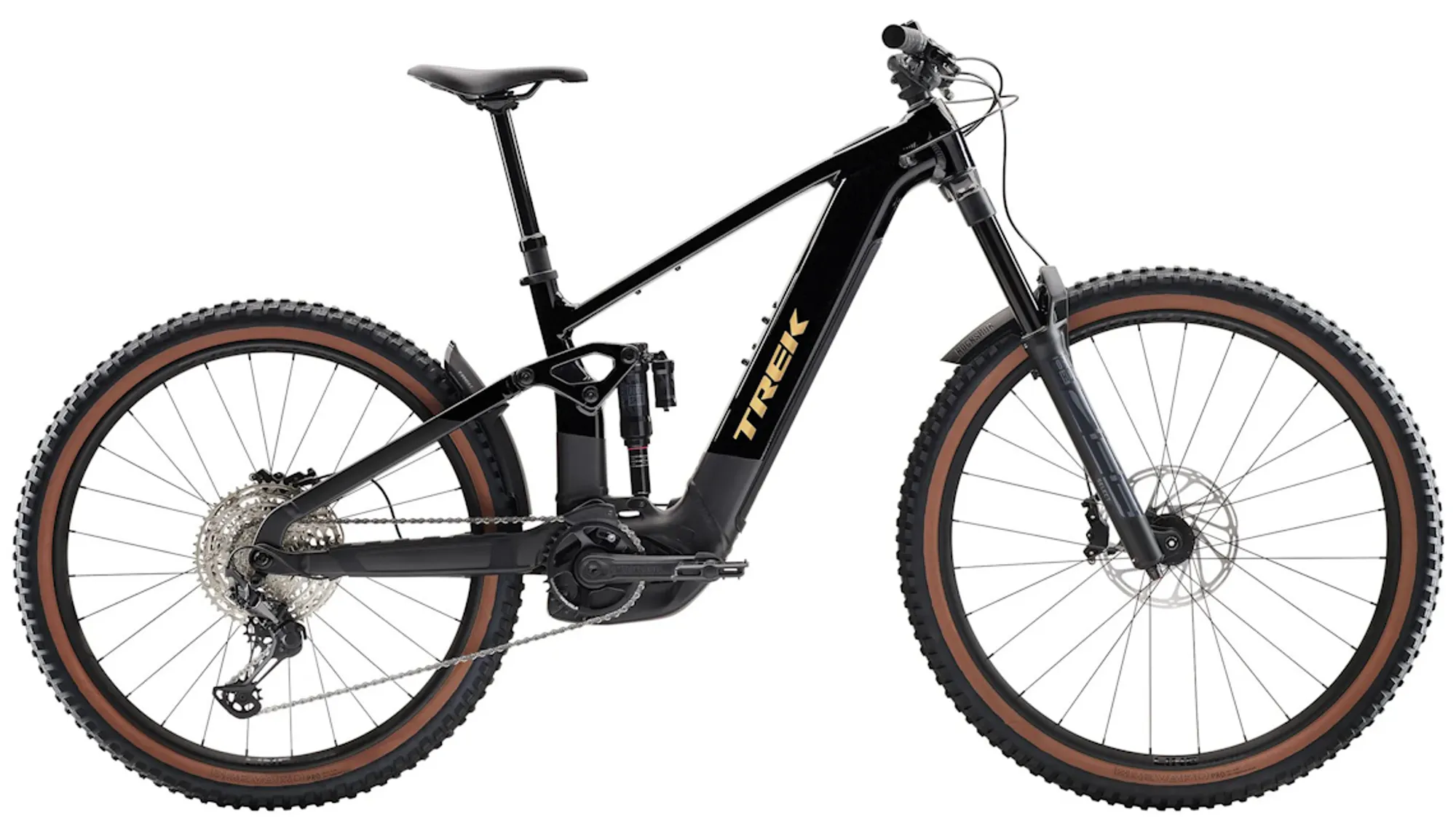

Trek Rail+ 8 Gen 5
The Rail+ 8 is an aluminium enduro e-bike with big power and tons of travel for wild, ride-anything adventures.
The Rail+ 8 is an aluminium enduro e-bike with big power and tons of travel for wild, ride-anything adventures. It starts with an Alpha Platinum Aluminium frame paired with a RockShox Super Deluxe+ shock and ZEB Select fork (160 mm front/rear) for making quick work of chunky backcountry rock gardens. You get the smooth-shifting performance of a Shimano XT/SLX drivetrain, stop-on-a-dime control from SRAM DB 8 4-piston disc brakes, a Bontrager Line dropper post and tubeless-ready Bontrager Line TLR 30 wheels.
| Battery | 36V Bosch Power Tube x 21.3Ah 800Wh |

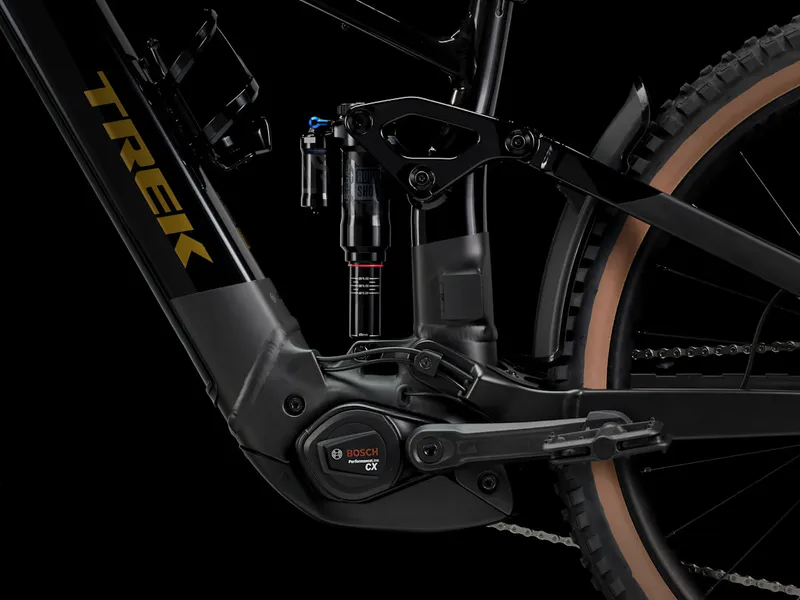

| Motor | Bosch Performance Line CX, 85Nm |
| Range (i) | 40 - 65km |
| Bikes Weight | Total 24.75kgs = Bike Weight 21.3kgs Battery Weight 3.45kgs |
| Warranty(ii) | Frame = 5 years, Motor & Battery = 2 years, Other Components = 1 year |
| Frame Sizes | SM, MD, LG, XL |
| Frame Colours | Dark Star |
| Tyres (Front) | Bontrager Pro 27.5" x 2.5" XT TR |
| Tyres (Rear) | Bontrager Pro 29" x 2.5" XT TR |
| Brakes | SRAM D 8 4-Piston hydraulic disk, SRAM Centerline 200mm Rotor |

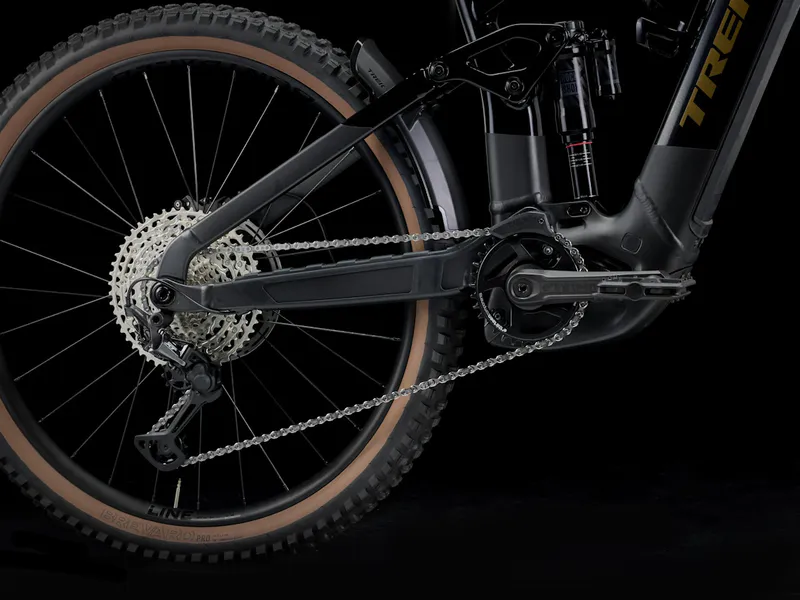

| Gears | Shimano Deore M6100 10-51T, 12 Speed |
| Power Modes | Torque sensor, 4 levels of power assist with walk mode |
| Fork | RockShox Super Deluxe Select RT, 205mm x 65mm |
| Frame Material | Alpha Platinum Aluminium |
| Maximum Speed | 32 kph |
| Maximum Load | 136 kg - rider and bags |
| Additional Features | Trek Custom Mudguard |
(i)Range is very dependent on a number of variables and the range referred to is indicative only
(ii) Relates to manufacturing fault and not "fair wear and tear"
*Specifications may change subject to availability of components at time of assembly
