Trek Rail+ 5 Gen 5

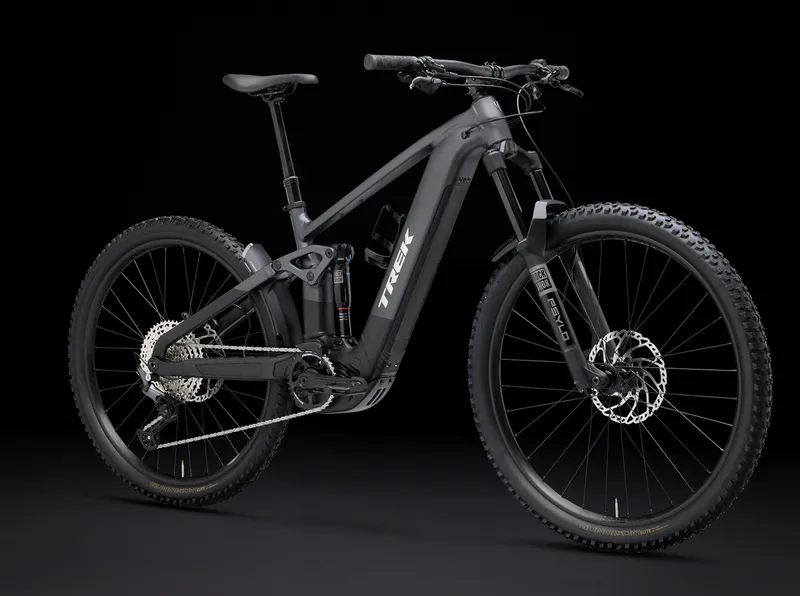

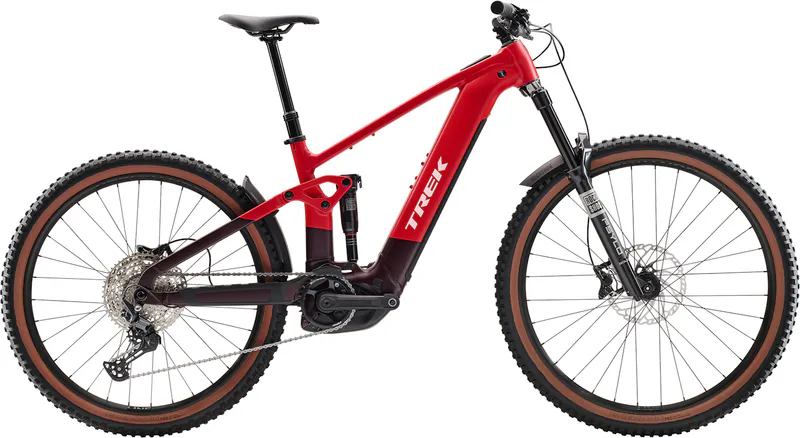

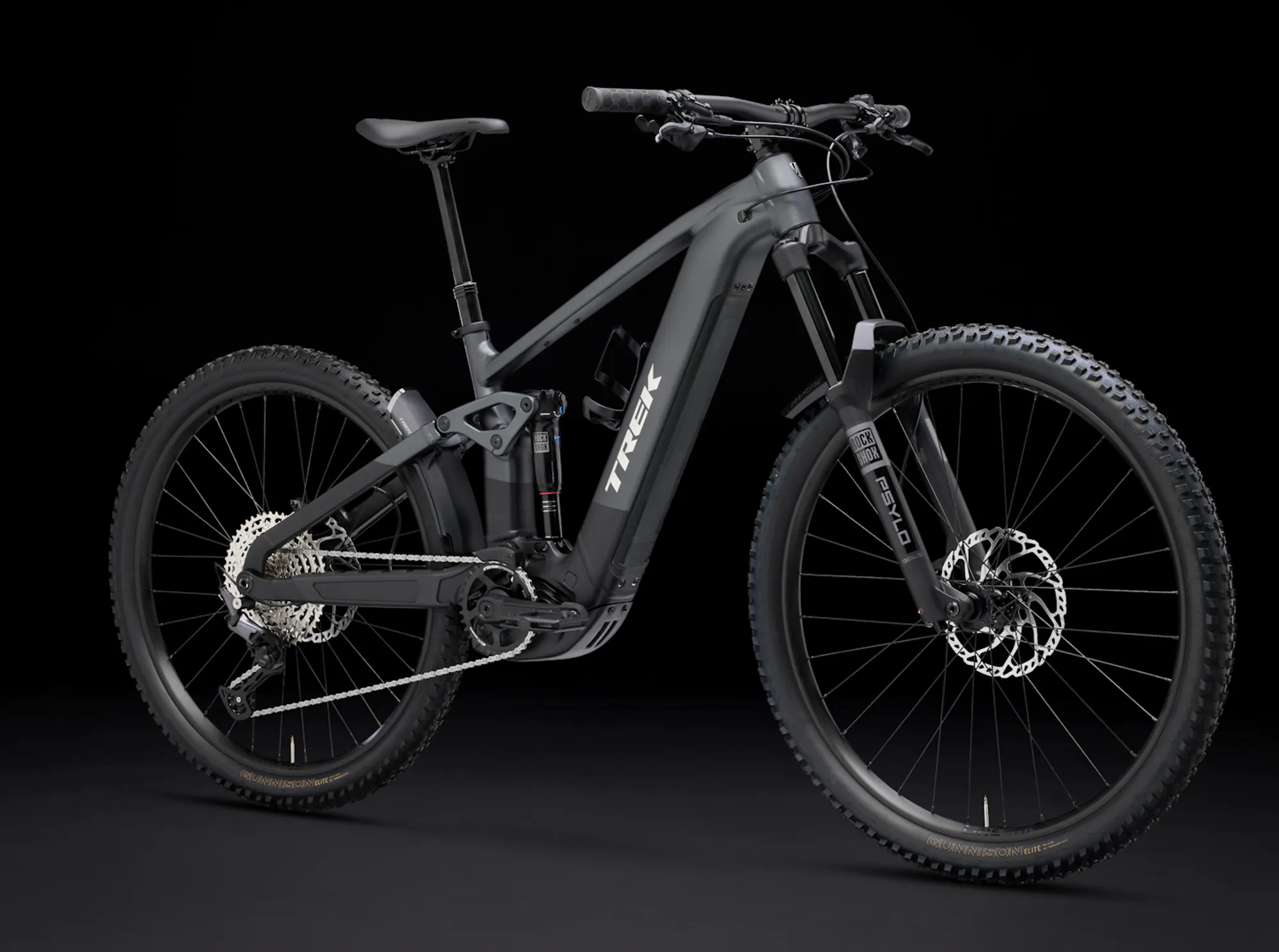

The Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures.
The Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminium frame partners with a RockShox Deluxe Select+ RT shock and Psylo Gold RC fork (160 mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post and tubeless-ready Bontrager Line TLR 30 wheels for charging into anything.
| Battery | 36V x 21.3Ah 800Wh |

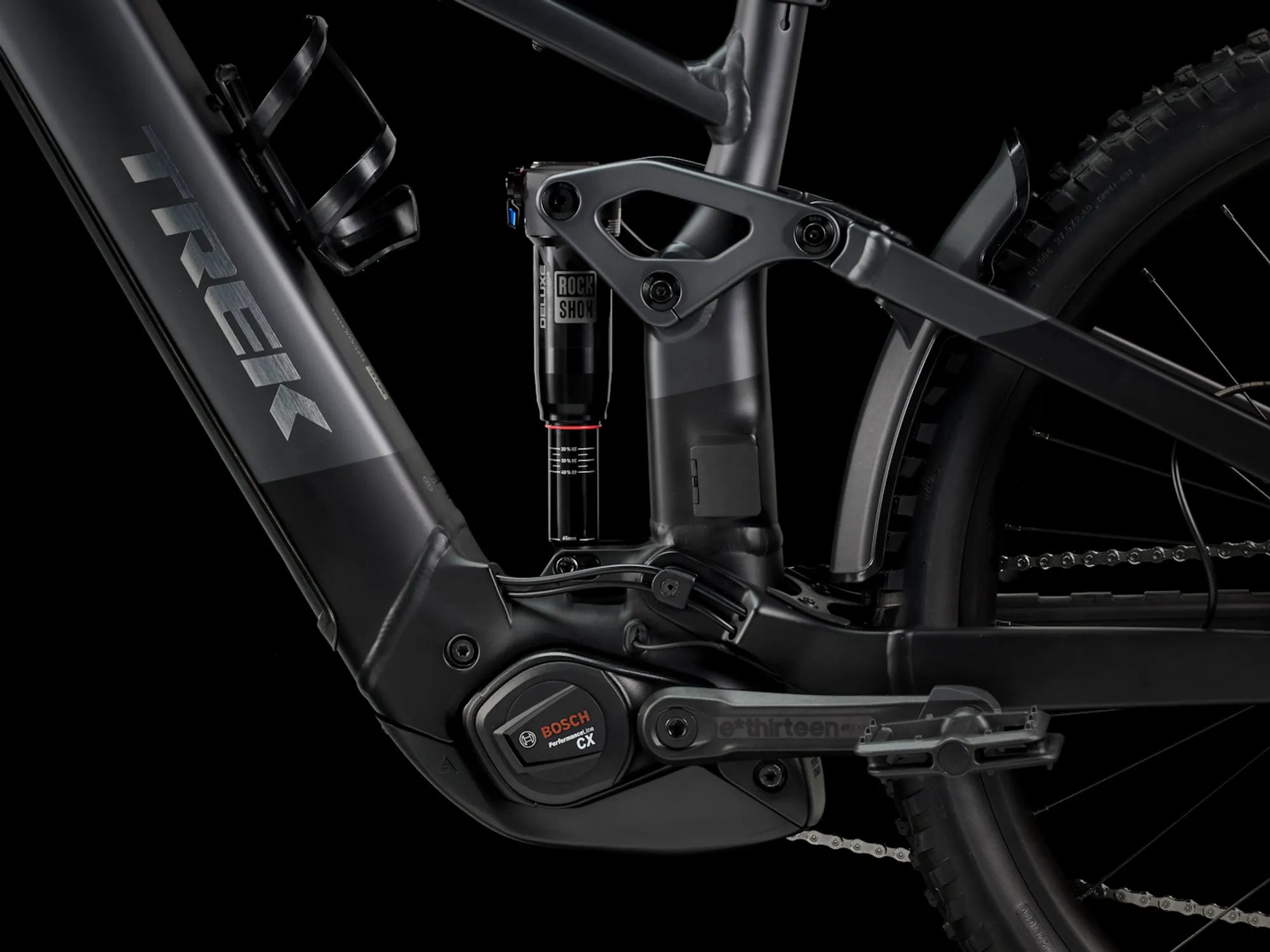

| Motor | Bosch Performance Line CX, 85Nm |
| Range (i) | 40 - 65km |
| Bikes Weight | Total 24.75kgs = Bike Weight 21.3kgs Battery Weight 3.45kgs |
| Warranty(ii) | Frame = 5 years, Motor & Battery = 2 years, Other Components = 1 year |
| Frame Sizes | SM, MD, LG, XL |
| Frame Colours | Viper Red, Lithium Grey |
| Tyres (Front) | Bontrager Pro 27.5" x 2.5" XT TR |
| Tyres (Rear) | Bontrager Pro 29" x 2.5" XT TR |
| Brakes | Shimano 4 piston MT4100 lever, MT420 Calliper |

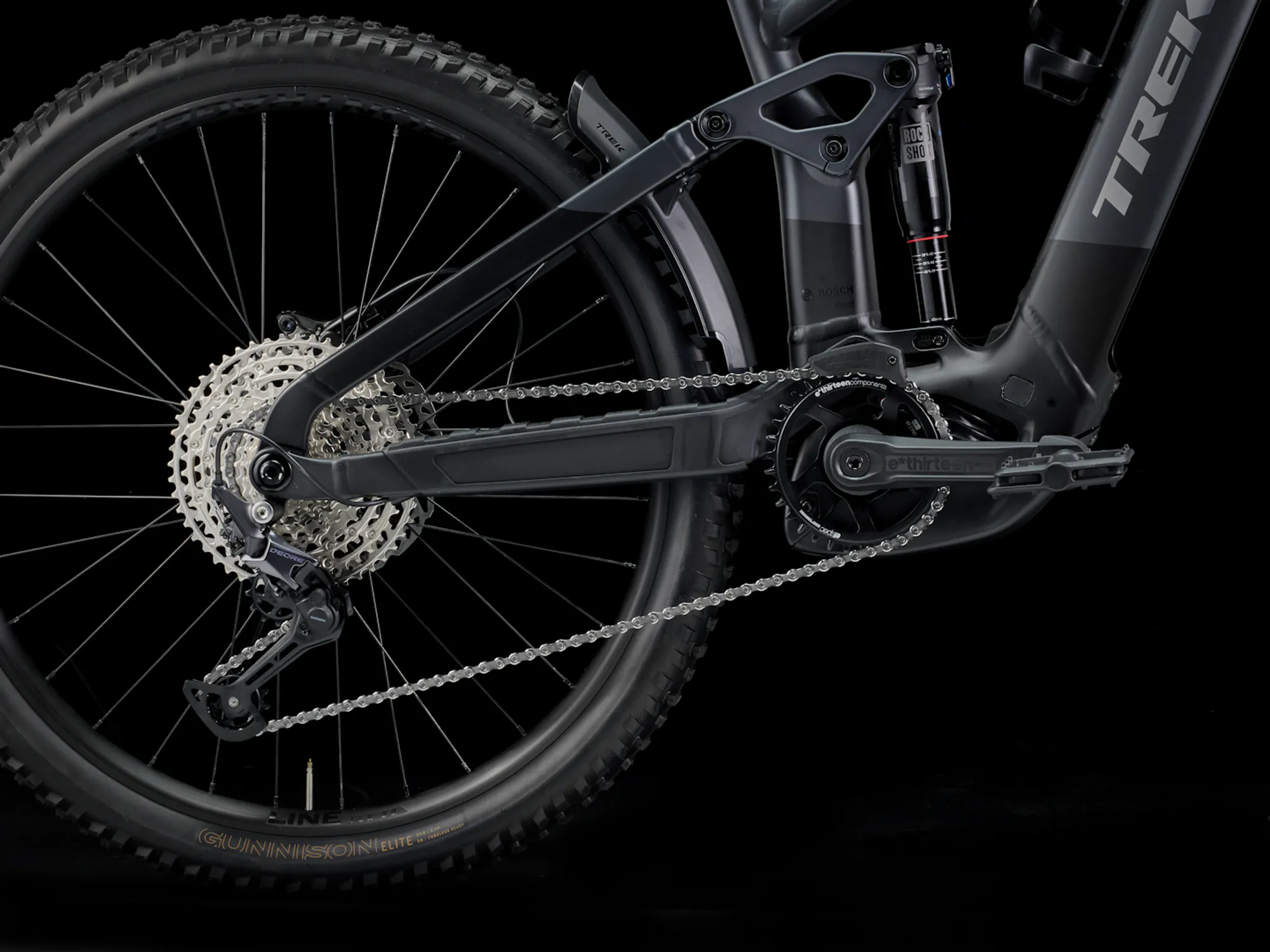

| Gears | Shimano RT66, 6 bolt 203mm rotor. Shimano Deore M6100 10-51T, 12 Speed |
| Power Modes | Torque sensor, 4 levels of power assist with walk mode |

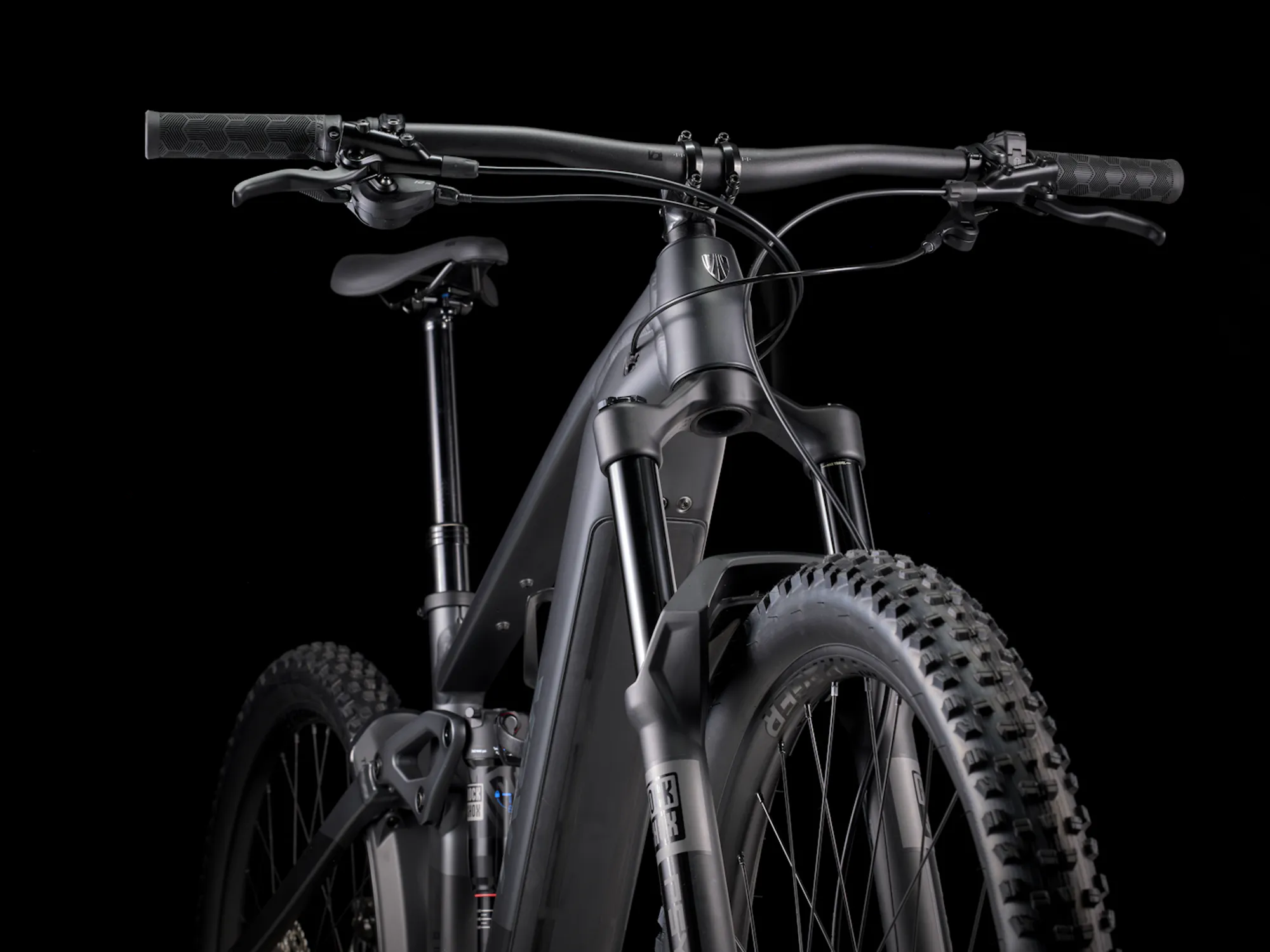

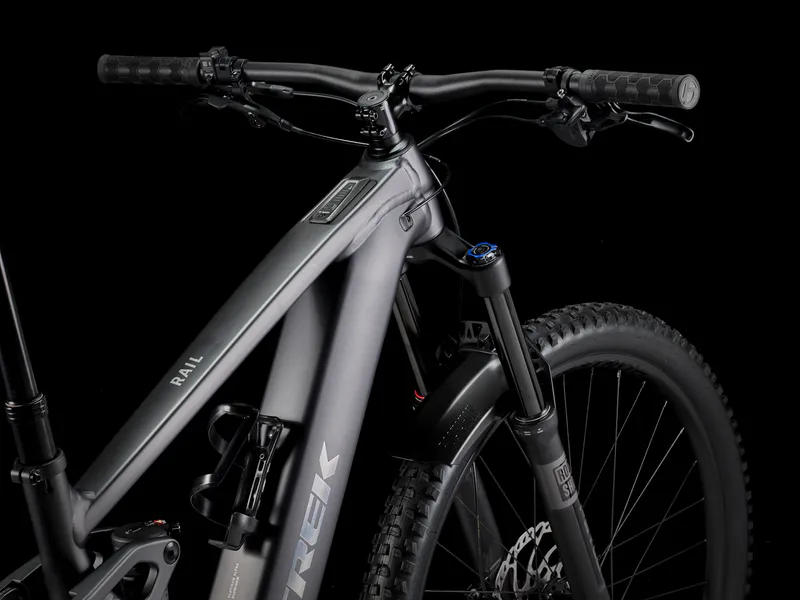

| Fork | RockShox Psylo Gold RC, 160mm Travel |
| Frame Material | Alpha Platinum Aluminium |
| Maximum Speed | 32 kph |
| Maximum Load | 136 kg - rider and bags |
| Additional Features | Trek Custom Mudguard |
(i)Range is very dependent on a number of variables and the range referred to is indicative only
(ii) Relates to manufacturing fault and not "fair wear and tear"
*Specifications may change subject to availability of components at time of assembly
