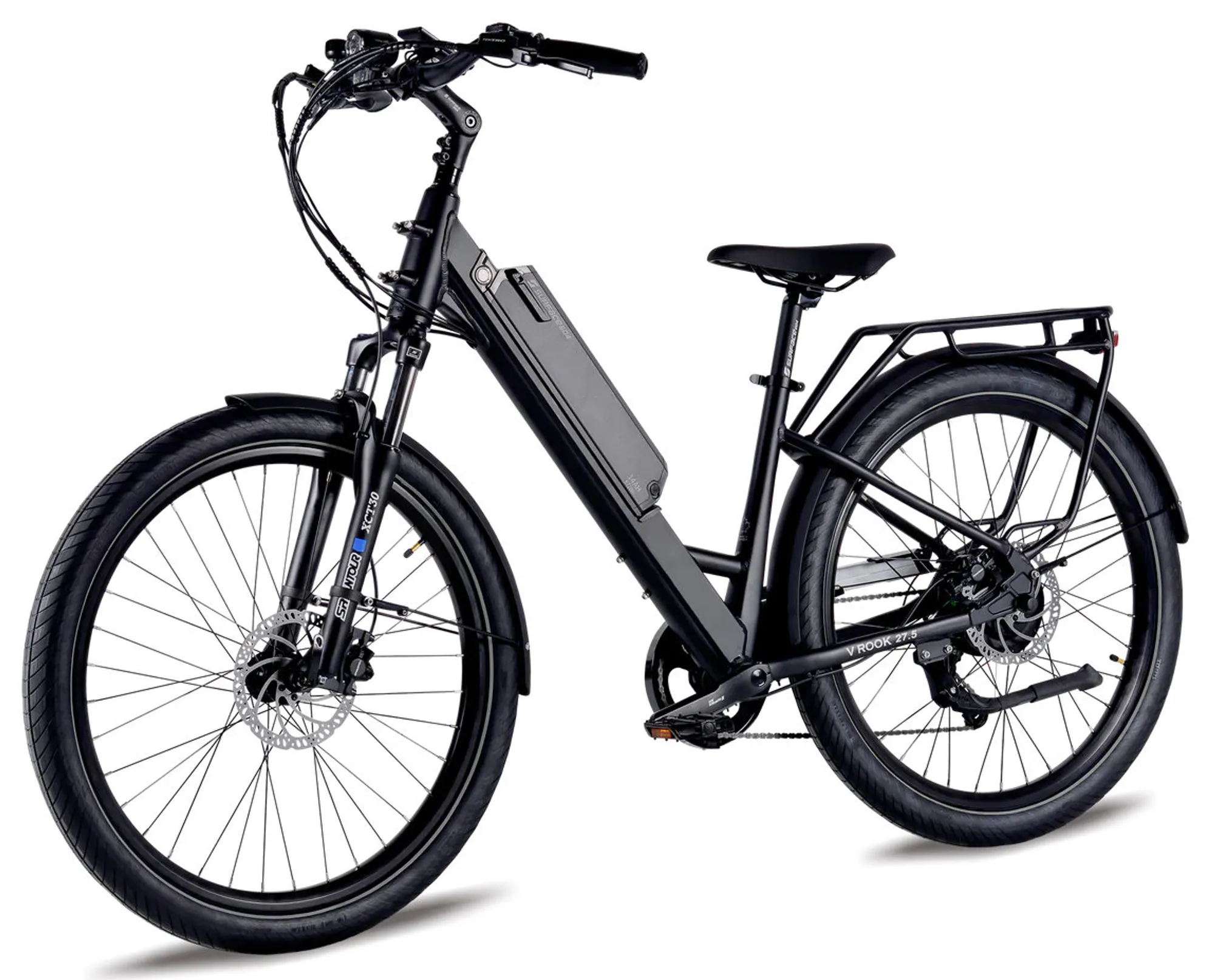

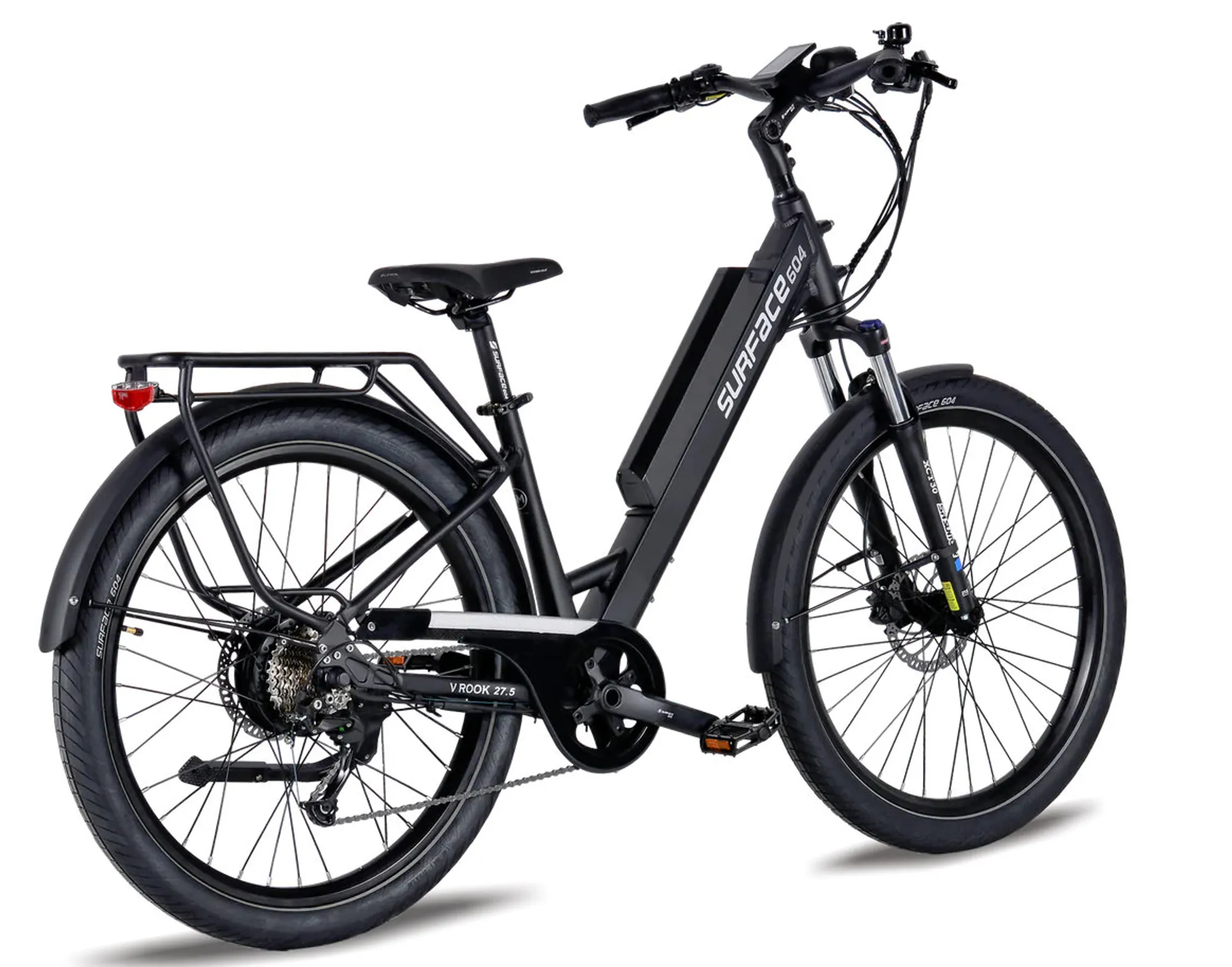

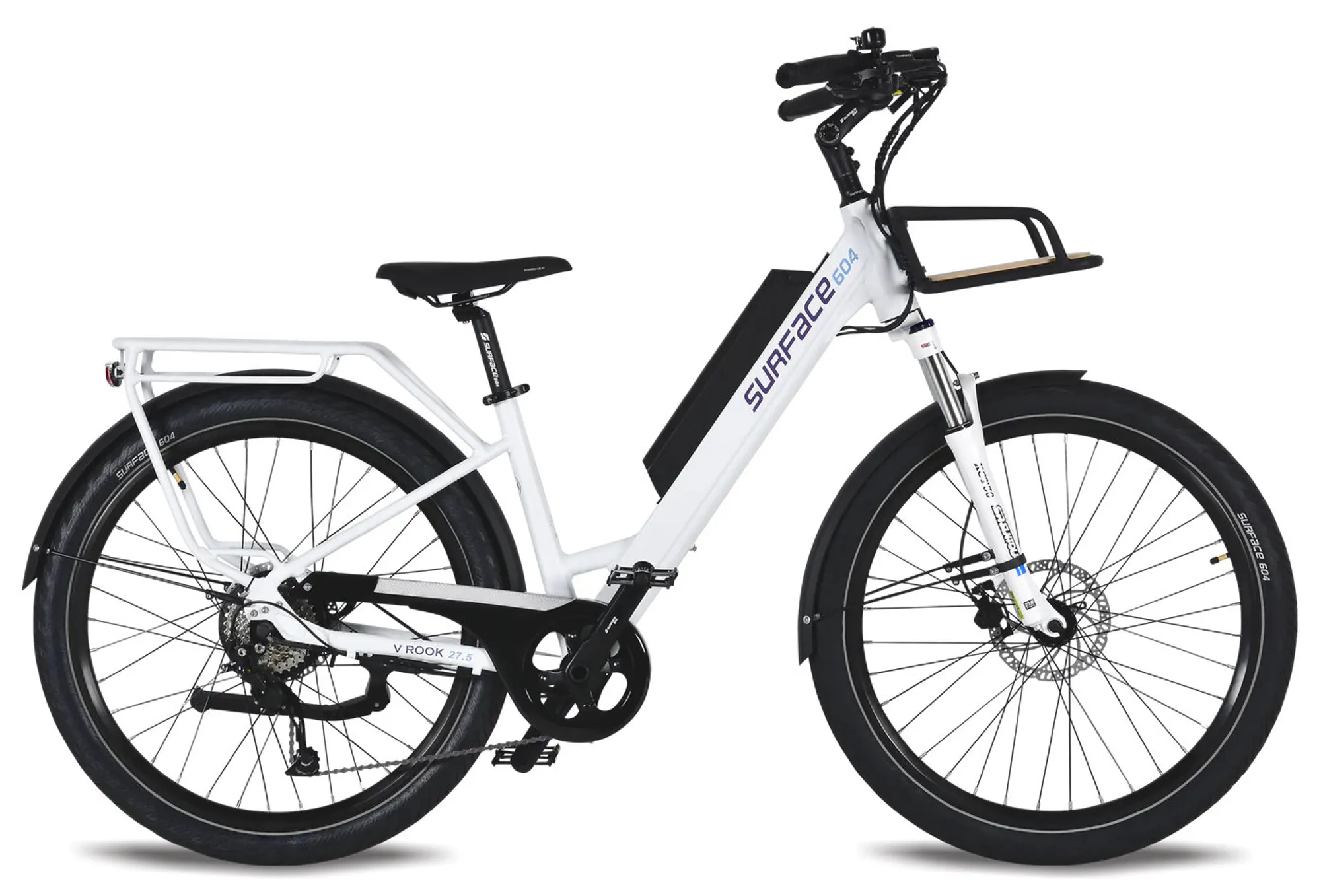

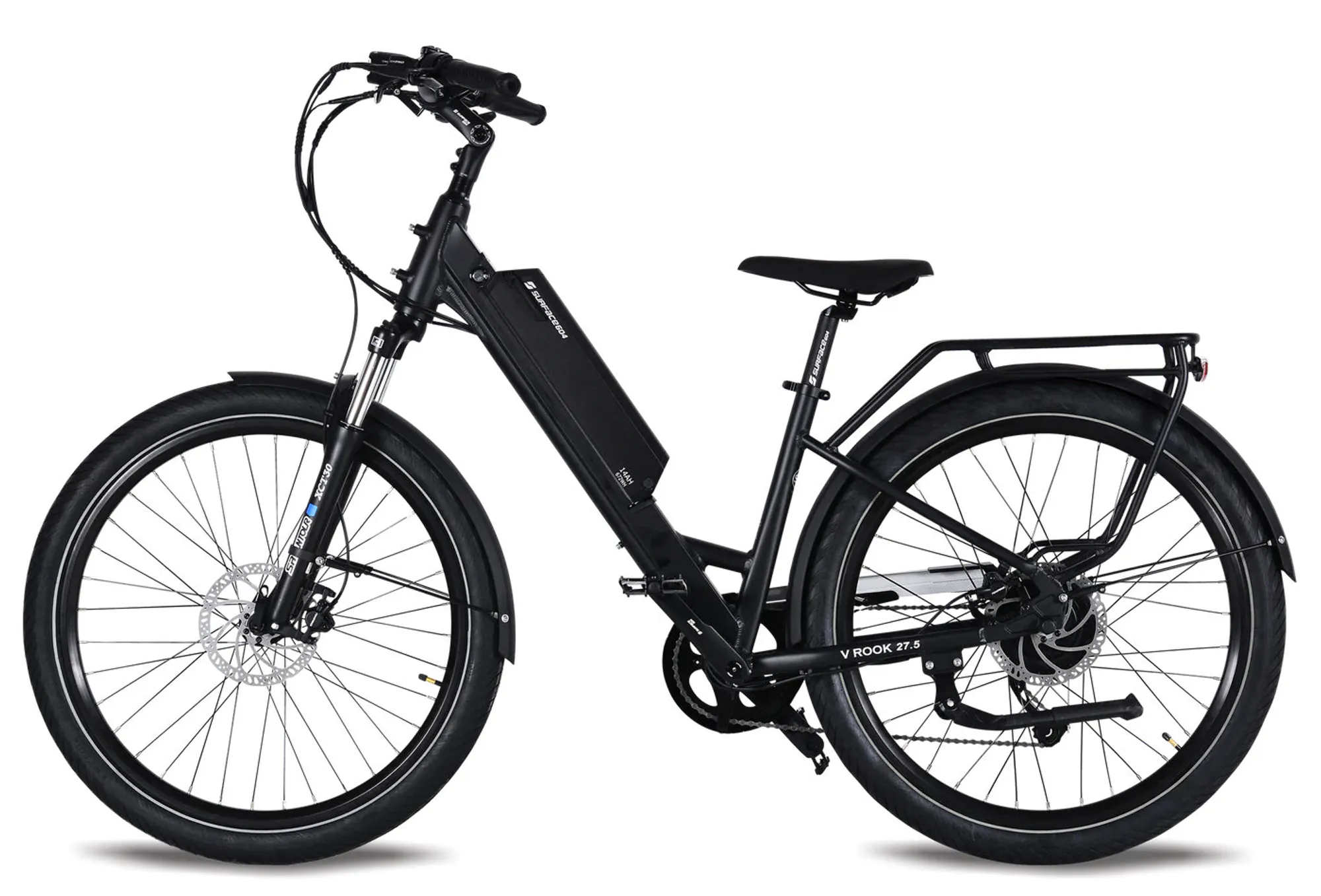

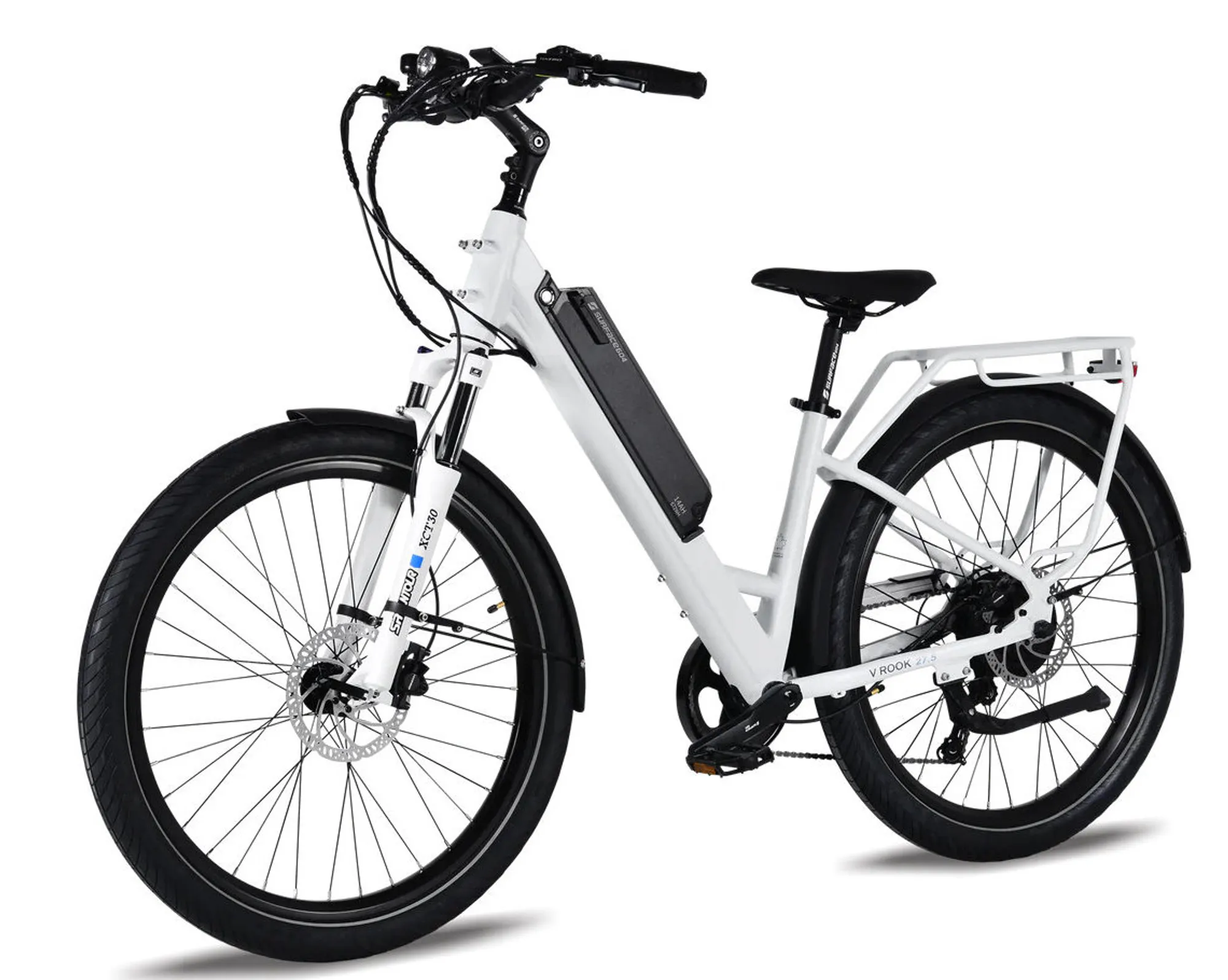

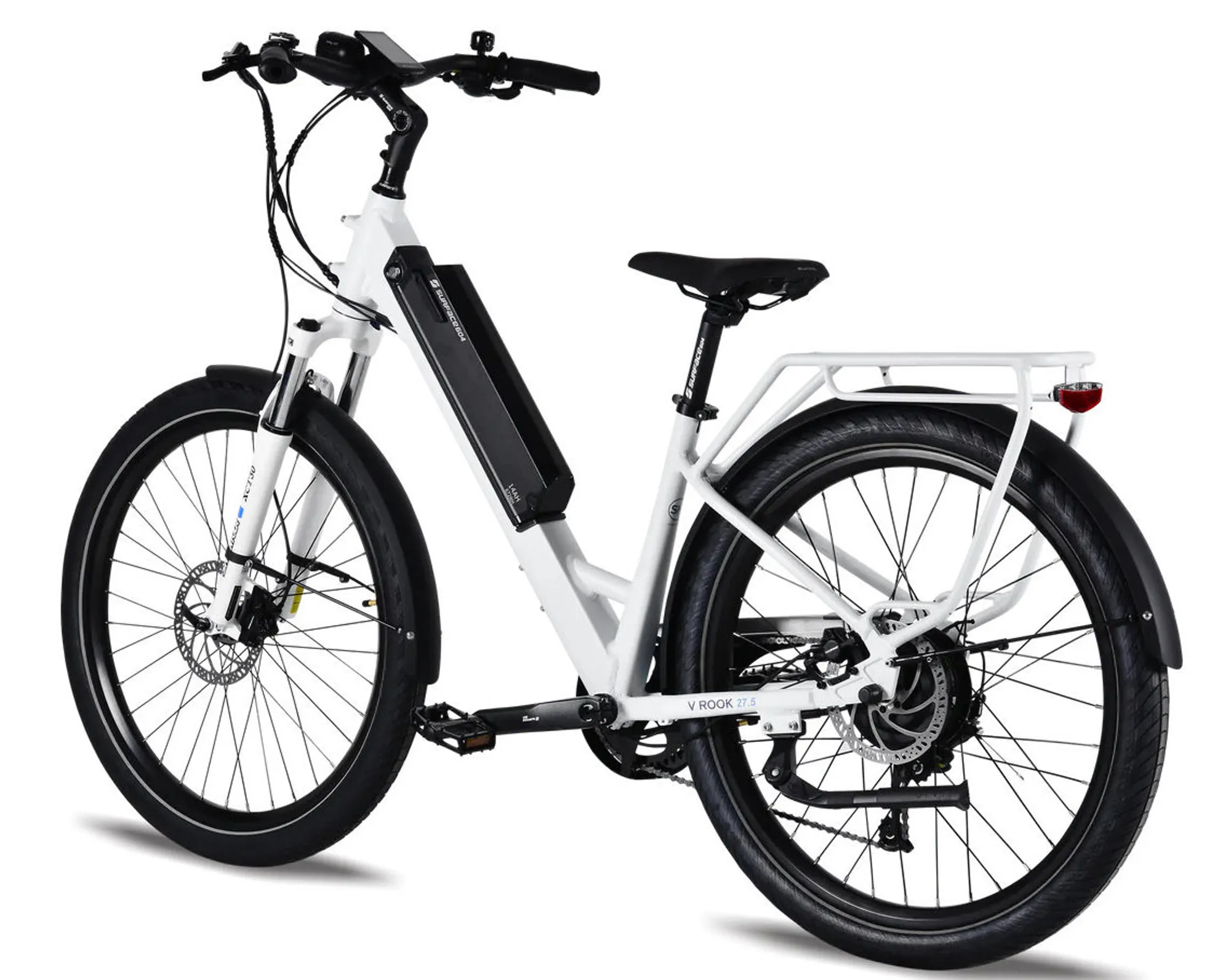

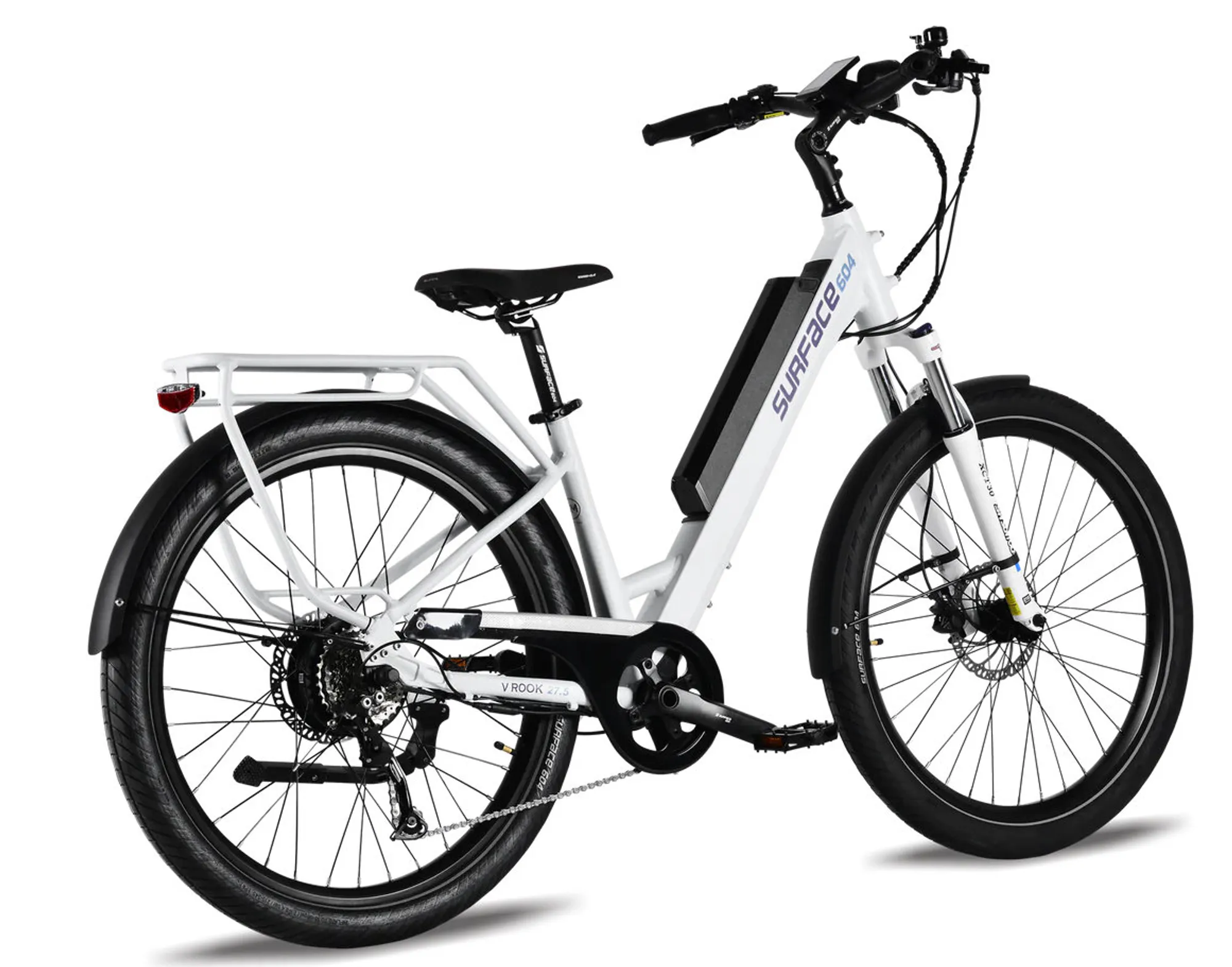

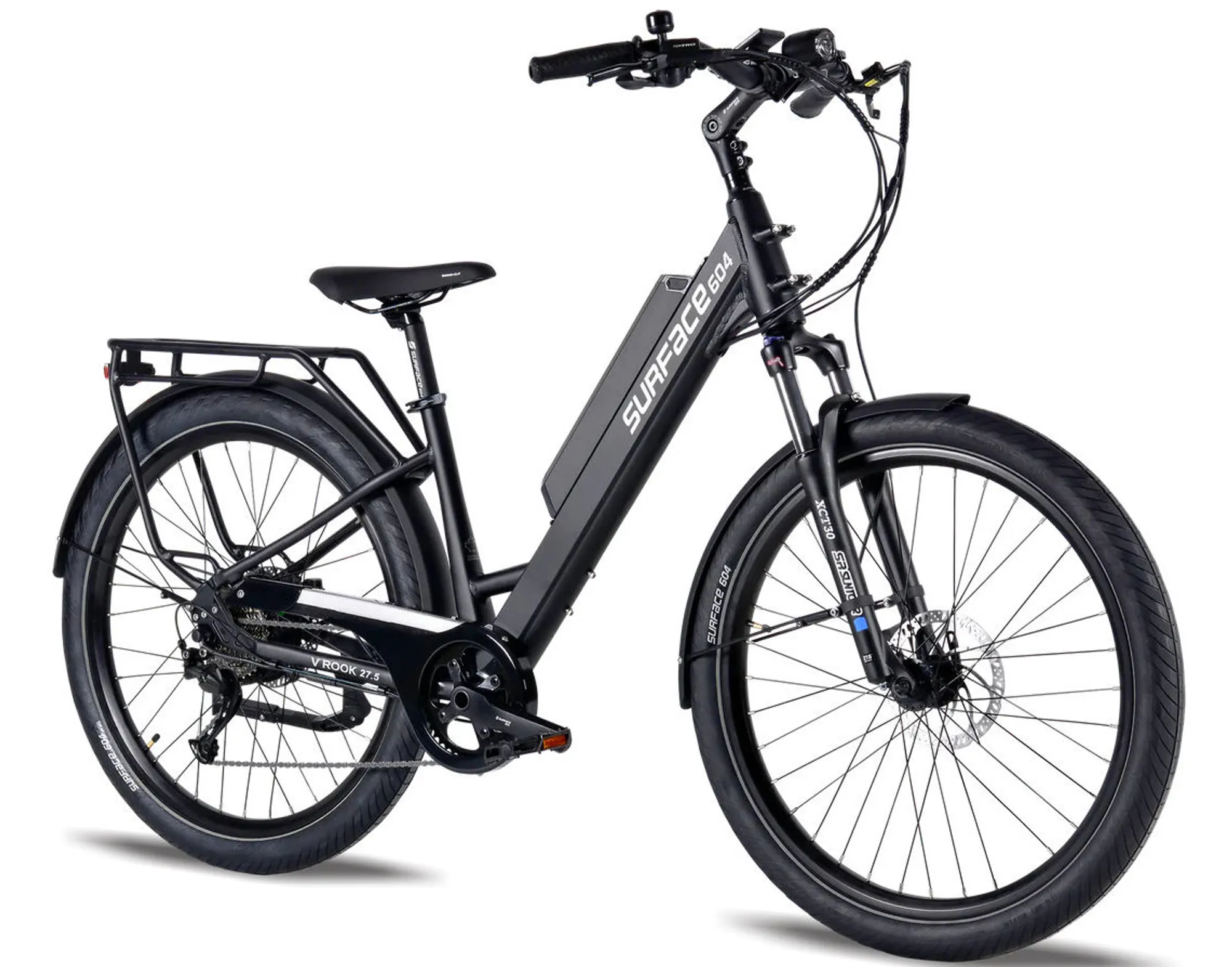

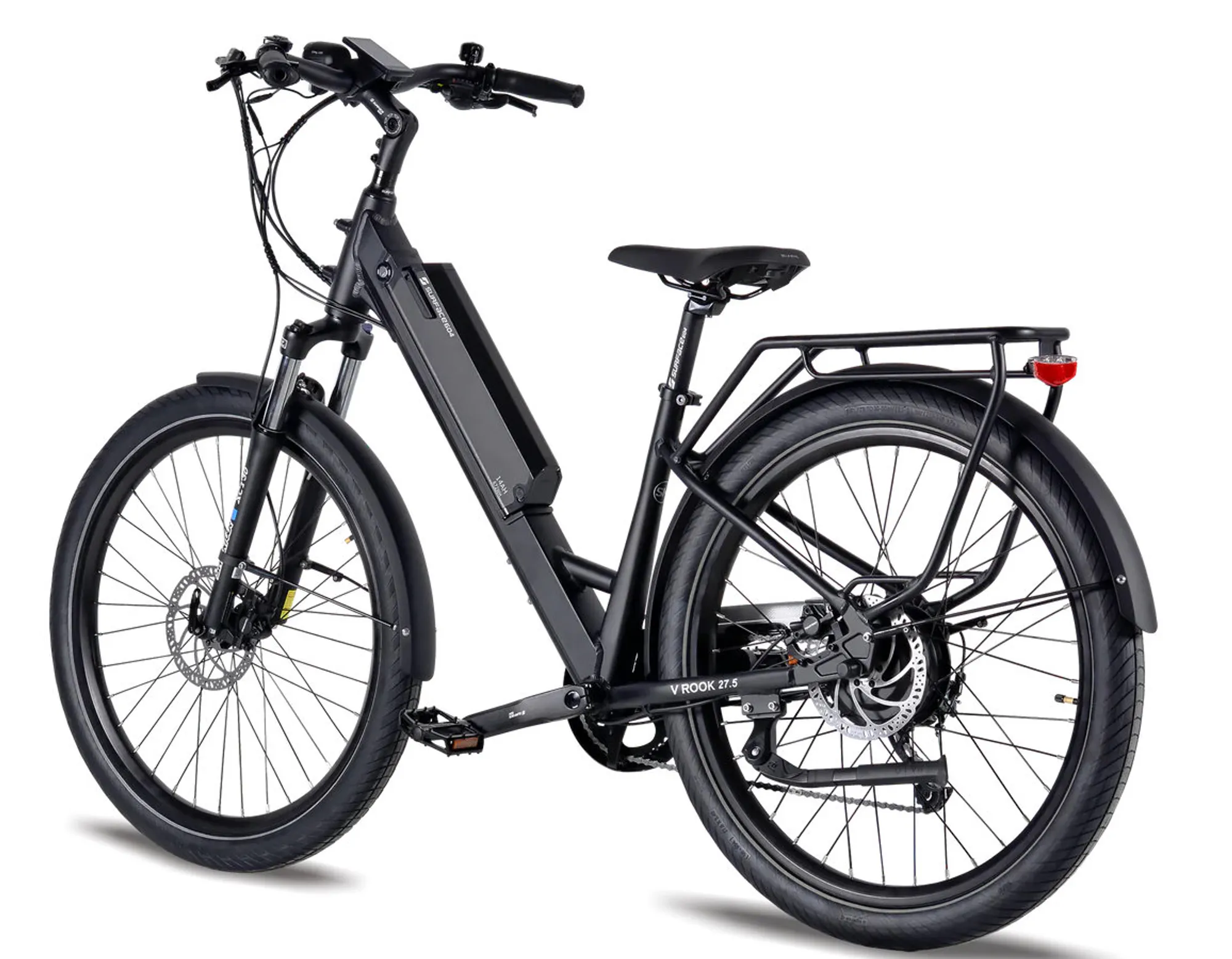

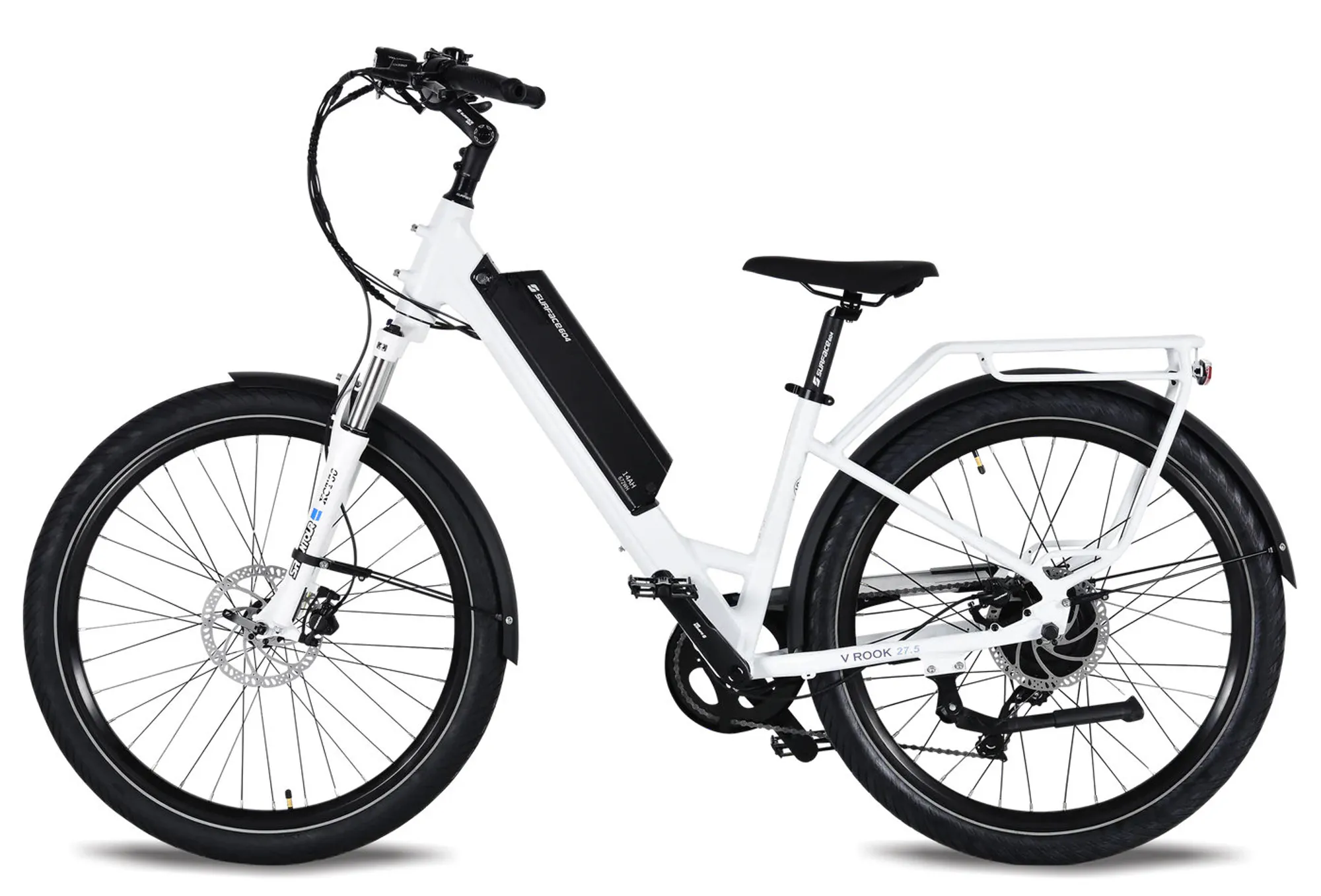

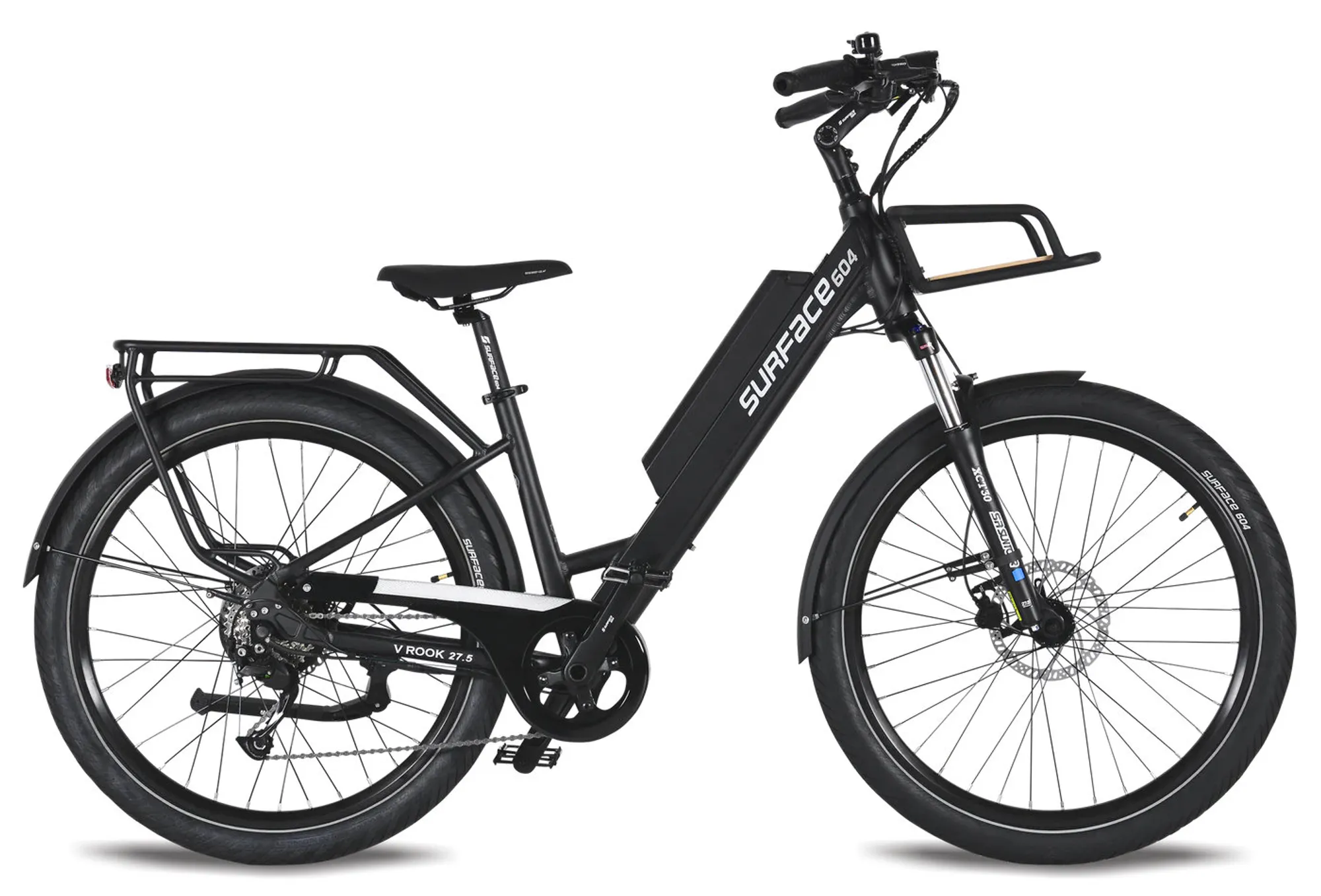

Surface 604 V Rook

A feature-rich and approachable step-through city bike, available in two battery sizes and two colours. It comes standard with rear rack, mudguards and a new Büchel Shiny 120 e-bike LED headlight making it perfect for the shops and cruising around the city.

A rare combination of a torque sensor with a rear hub 48V motor gives a smooth and responsive riding experience where the power output is matched with the force applied to the pedals, while the combination of a Suntour suspension fork, Selle Royal "Essenza Plus" saddle, ergonomic grips and the upright riding position provides a high level of comfort.

The V Rook has solid stopping power with the 180mm rotors and dual-piston callipers for increased safety.

Specifications

Battery	Reention 48V x 20Ah 960Wh or 48V x 14Ah 672Wh
Motor	Bafang Geared Hub Brushless Motor 65Nm
Range (i)	60 - 90 kms or 90 - 120kms
Bike Weight	Total 30.35Kgs (Including Tray) = Bike Weight 26.94kgs Battery Weight 3.4kgs 14Ah 4.7kgs 20Ah
Warranty (ii)	Frame = 5 Years Motor and Battery = 2 years Other Components = 1 year
Frame Sizes	SM, ML
Frame Colours	Black, White, Pink
Tyres	Surface604 Panaracer 27.5" x 2.4" Puncture protection, Reflective sidewall
Brakes	Tektro HD E-350
Gears	Shimano Alivio, 11 - 36T, 9 Speed
Drive Type	Torque sensor, 5 levels of PAS with walk assist mode
Forks	SR Suntour XCM 32, 29ER 80mm with quick release
Frame Material	6061 Aluminium Alloy
Maximum Speed	32kph
Maximum Load	120 kg - rider and bags
Additional Features	Front Light - Ambient Sensor, Thumb Throttle, Motor Cut Out Sensors, Front and Rear Fender,Rear Light - brake activated

(i)Range is very dependent on a number of variables and the range  referred to is indicative only
(ii) Relates to manufacturing fault and not "fair wear and tear"
*Specifications may change subject to availability of components at time of assembly
