Cannondale Topstone 4 (2022)

A capable, versatile gravel road bike. Built for chasing horizons, exploring routes less travelled or accelerating your commute.

Where it thrives

• Gravel roads, out in the elements

What it's built for

• Traction, handling, comfort

Highlights

• Light, durable SmartForm C2 Alloy Frame w/ full carbon fork
• microSHIFT Advent X 10-speed shifting / Promax mechanical disc brakes
• WTB Riddler Comp tires, 700 x 37c

Feel the light

• Light and lively, smooth yet snappy. Topstone's SmartForm C2 Alloy construction showcases our decades of expertise in aluminum craftsmanship

Full Carbon Fork

• A full carbon fork with a tapered steerer and 12mm thru-axles delivers a light, comfortable and precise-steering front end.

OutFront Steering Geometry

• Keeps the steering light and agile, while positioning the wheel further in front of the rider for stability and confidence on rougher stuff. Plus it reduces the chance of toe overlap on smaller sizes.

Dropper Ready

• Built to accept an internally-routed 27.2 dropper seatpost, which shouldn’t really be a surprise on a bike that's this off-road capable.

Removable Fender Bridge

• Bolts on when you want fenders, disappears when you don't.

Specs

DETAILS

Platform - Topstone Alloy
Model Name - Topstone 4
Model Code - C15801M

FRAMESET

Frame - SmartForm C2 Alloy, 12x142 thru-axle, tapered headtube, flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts
Fork - BallisTec Full Carbon, 1-1/8" to 1-1/4" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru axle
Headset - Integrated, 1-1/8" - 1-1/4"

DRIVETRAIN

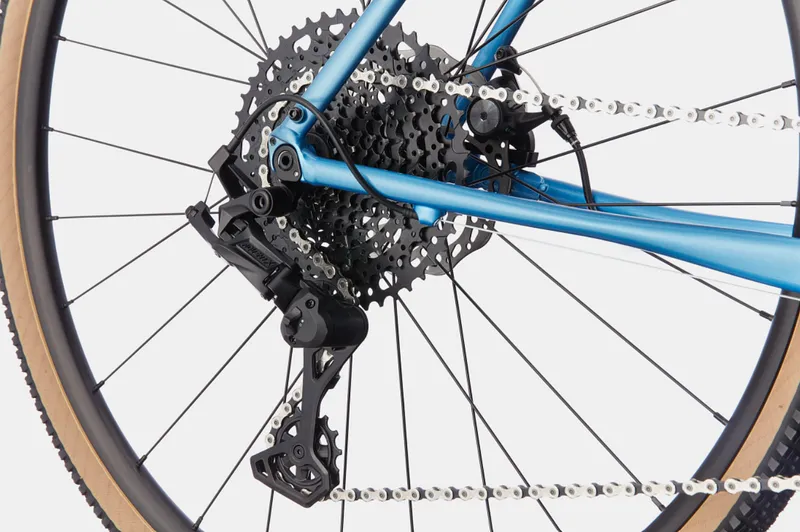

Rear Derailleur - microSHIFT Advent X
Shifters - microSHIFT Advent X, 10-speed
Chain - KMC X10, 10-speed
Crank - Prowheel, 40T
Rear Cogs - microSHIFT, 11-48T, 10-speed
Bottom Bracket - Cartridge, square taper

BRAKES

Brakes - Promax Render R mechanical disc, 160/160mm rotors

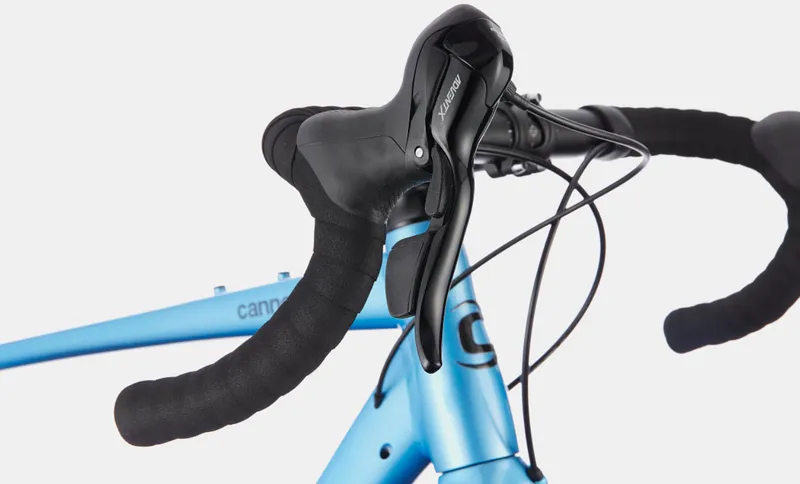

Brake Levers - microSHIFT Advent X

WHEELS

Rims - RD 2.0, 28h
Front Hub - Formula alloy, 12x100mm
Rear Hub - Formula alloy, 12x142mm
Spokes - Stainless Steel, 14g
Tires - WTB Riddler Comp, 700 x 37c
Tire Size - 37
Wheel Size - 700c

COMPONENTS

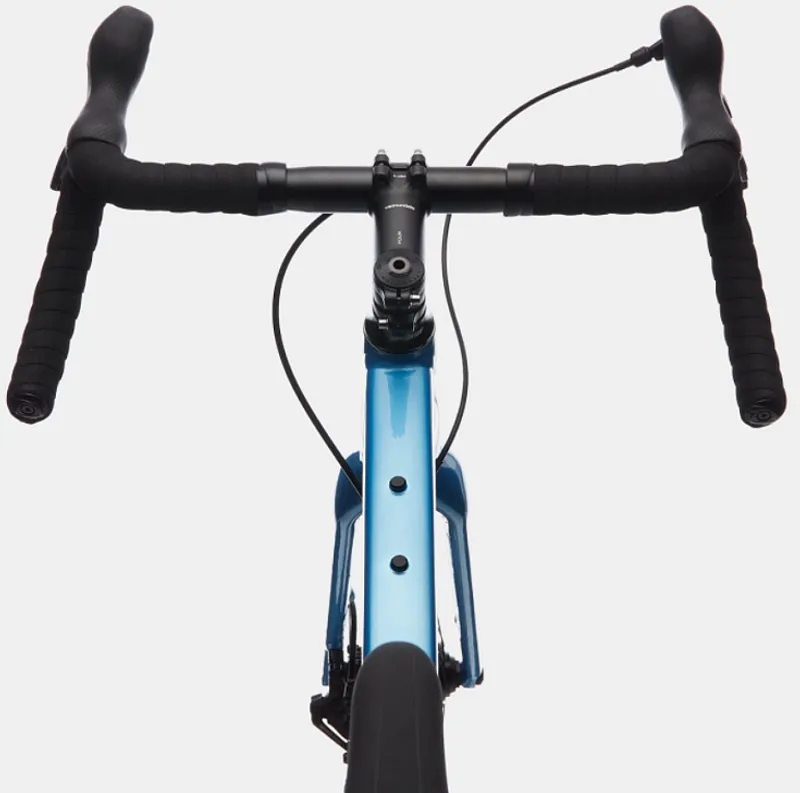

Handlebar - Cannondale 3, butted 6061 alloy, 16 deg flare drop
Stem - Cannondale 3, 6061 Alloy, 31.8, 7°
Grips - Cannondale Bar Tape, 3.5mm
Saddle - Cannondale Stage CX
Seatpost - Cannondale 4, 6061 Alloy, 27.2 x 350mm

EXTRA

Extra 1 - Removable fender bridge



Geometry
